# The R-universe project
## UseR 2021
### Jeroen Ooms
### 2021-07-09

---

# Research / software publishing for everyone !

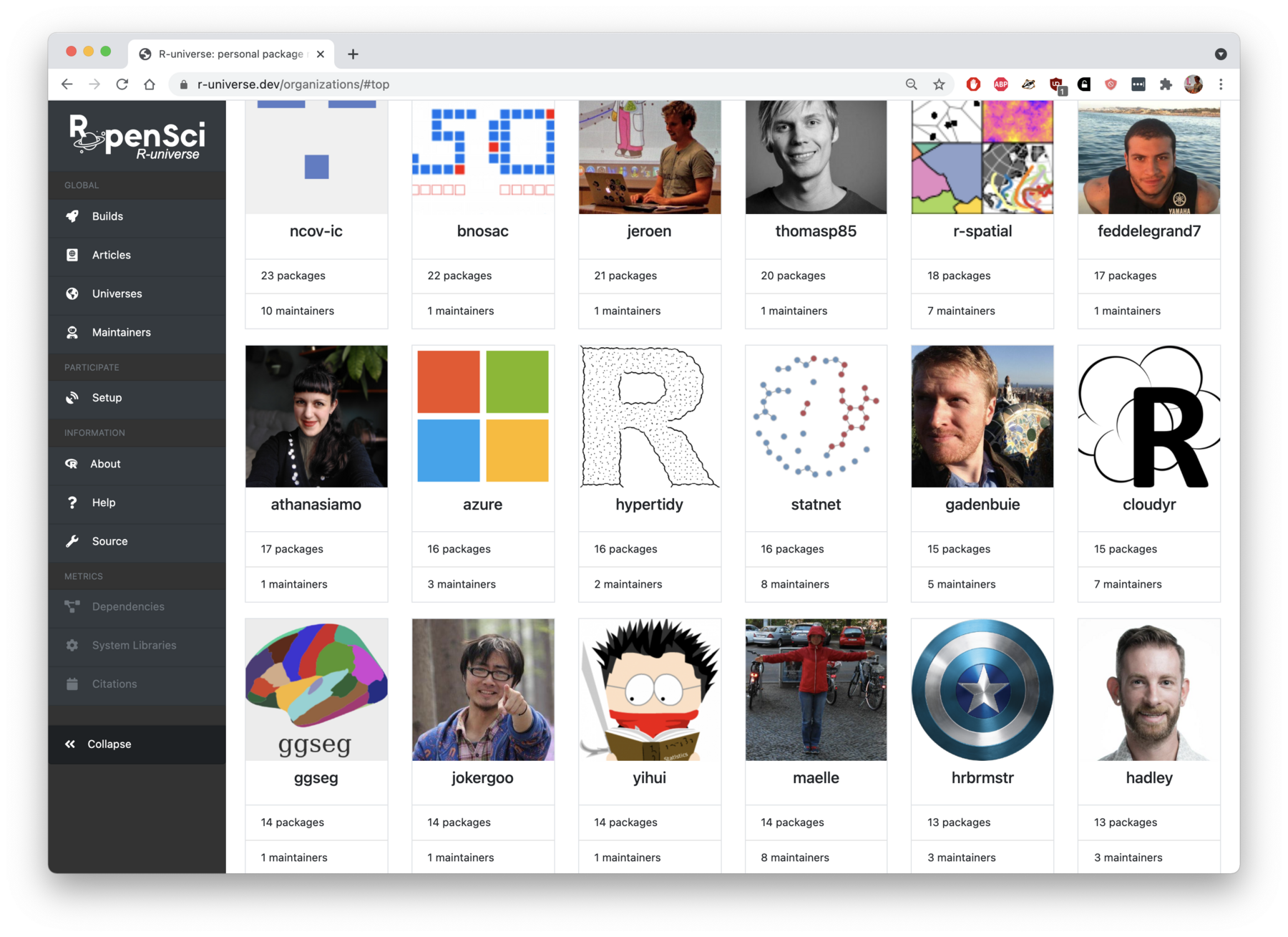

![website2](images/website2.png)

???

Welcome! This talk is about R-universe, which is a ambitious new platform by rOpenSci.

In the talk I will discuss some of the different components and use cases,

but if you're going to take away one thing from this talk, it should be that r-universe is for everyone.

It is a place for publishing research and research software,
it can be used by individuals or organizations.

By novice R users, students, researchers, or professional package developers.

There is no gate-keeping.
If you have some R code or rmarkdown article that you think is worth sharing,
regardless of what it is, you can sign up and do that today.
No matter your background or expertise.

---
class: fullpage

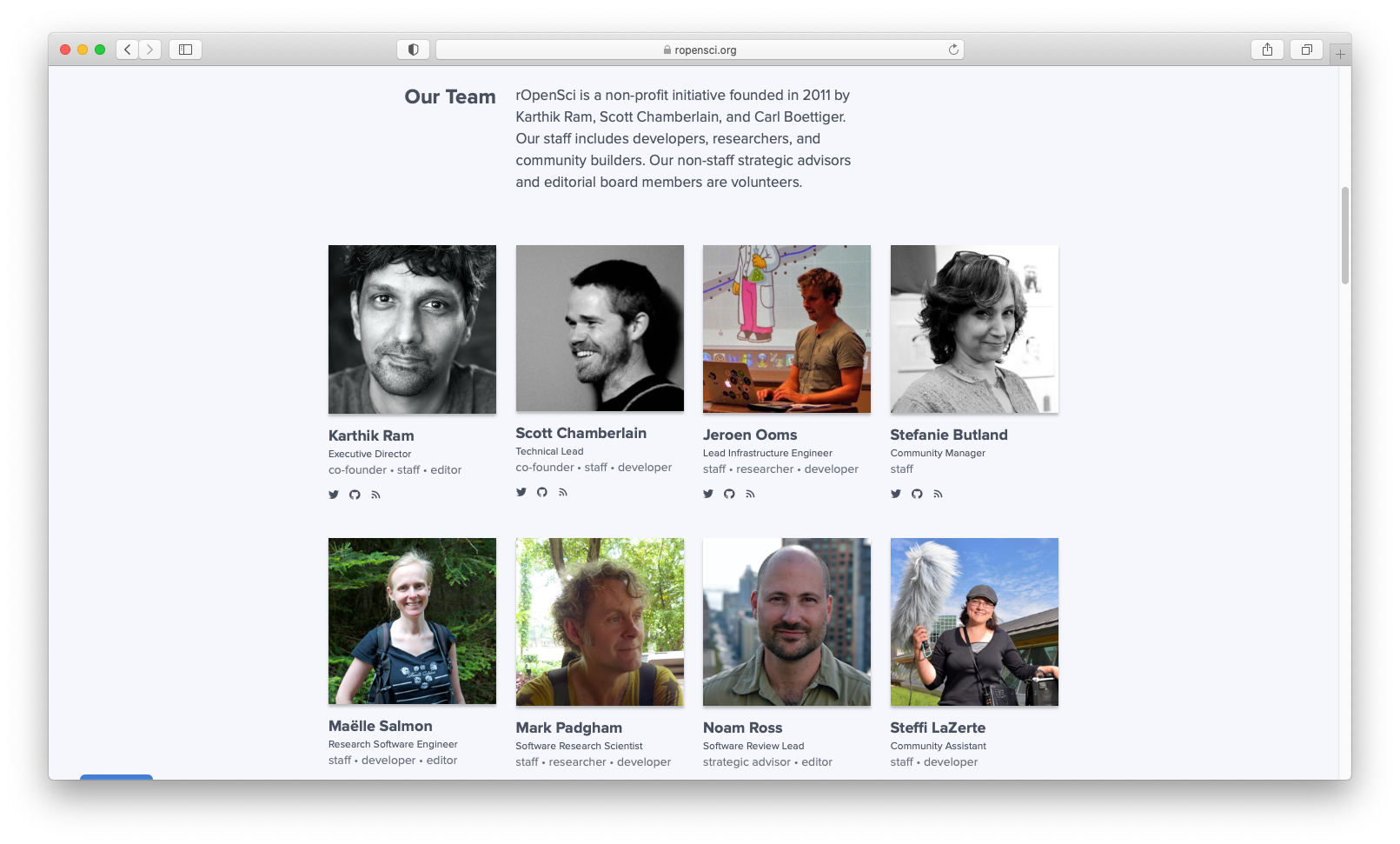

# About me: the rOpenSci team

![website2](images/ropensci-team.png)

???

A little bit about me.

My name is Jeroen. I am a staff research engineer, and the lead infrastructure for rOpenSci.

If you don't know rOpenSci: we are a research group based in UC Berkeley doing all sorts of things related to open science with R.

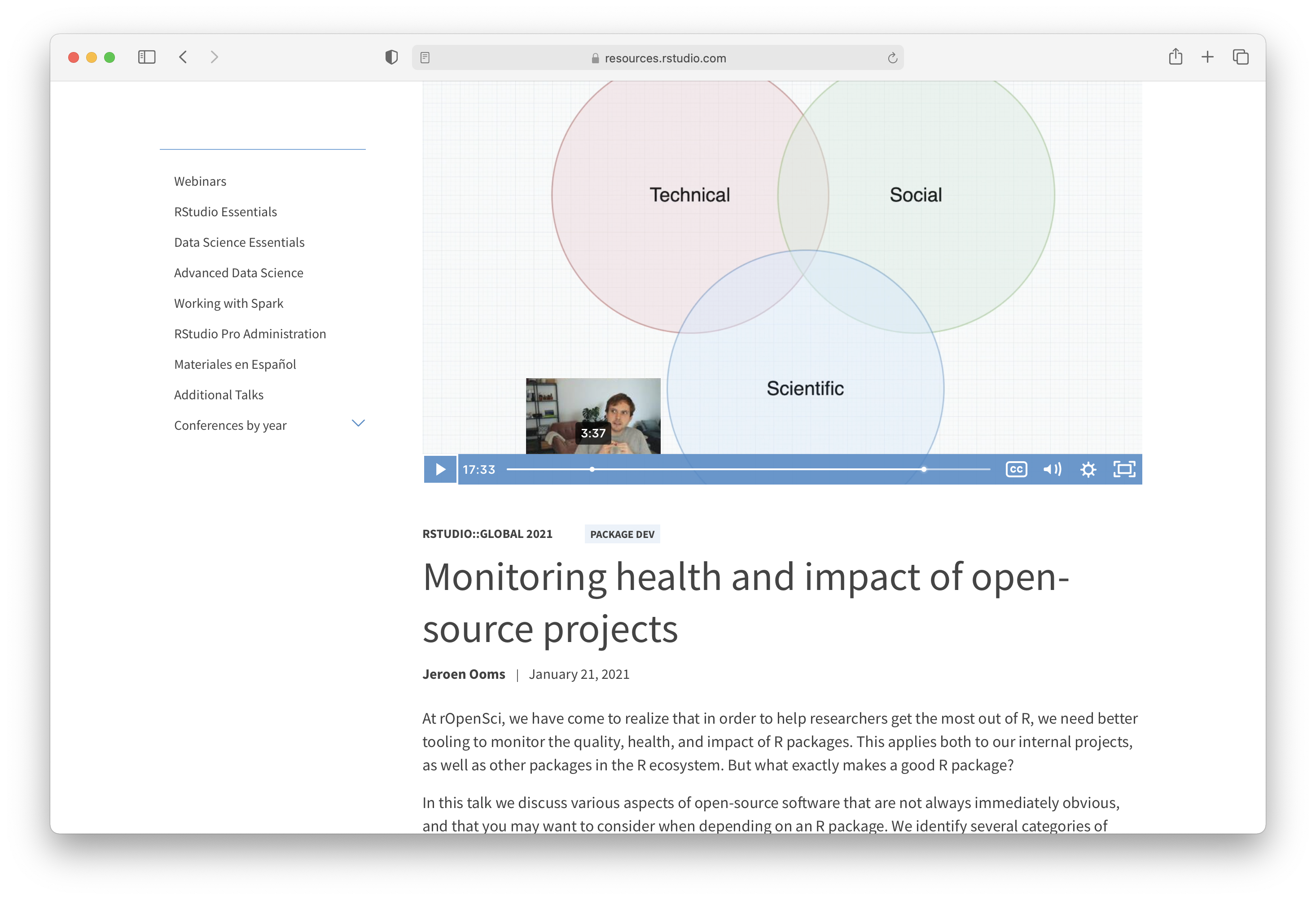

If you want to learn more about rOpenSci, checkout the talk by Stefanie Butland earlier this week,
who gives a great overview of our mission and various activities.

---
class: fullpage

# CRAN Packages

[![pkgscreen](images/packages2.png)](https://cran.r-project.org/web/checks/check_results_jeroen_at_berkeley.edu.html)

???

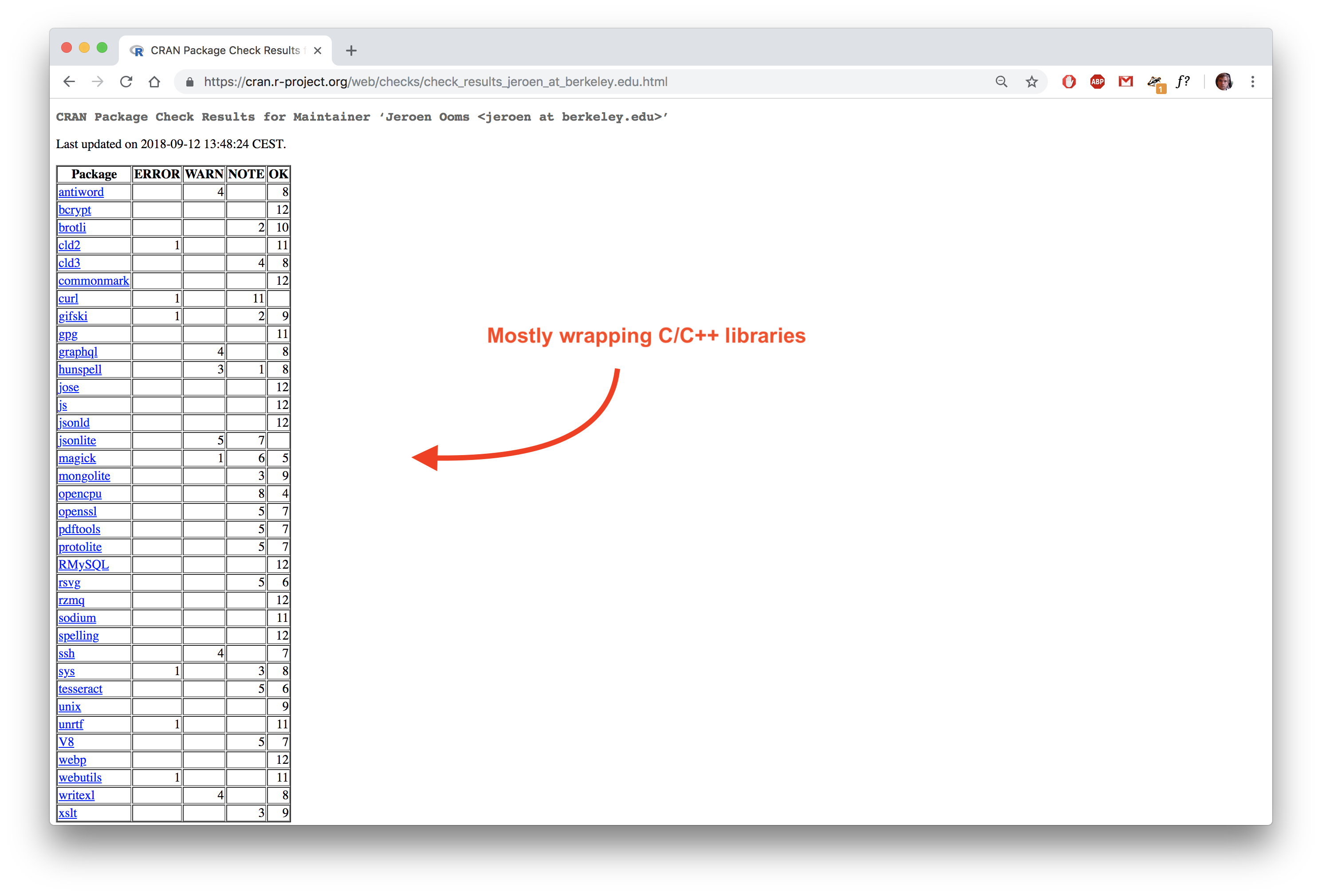

As part of my work with rOpenSci, I've written quite a few CRAN packages.

Mostly packages that interface to interesting C/C++ libraries that expose functionality to R that can be useful for researchers.
For example packages providing http clients, cryptography, databases, image processing, and so on.

---
background-image: url(images/windows.png)
background-position: 50% 50%

# R-for-windows toolchains, installers, libraries

???

And finally I am the maintainer for the official installers, and toolchains, and system libraries for R on Windows.

---
class: fullpage

# R-for-windows toolchains, installers, libraries

![website2](images/r-windows.png)

???

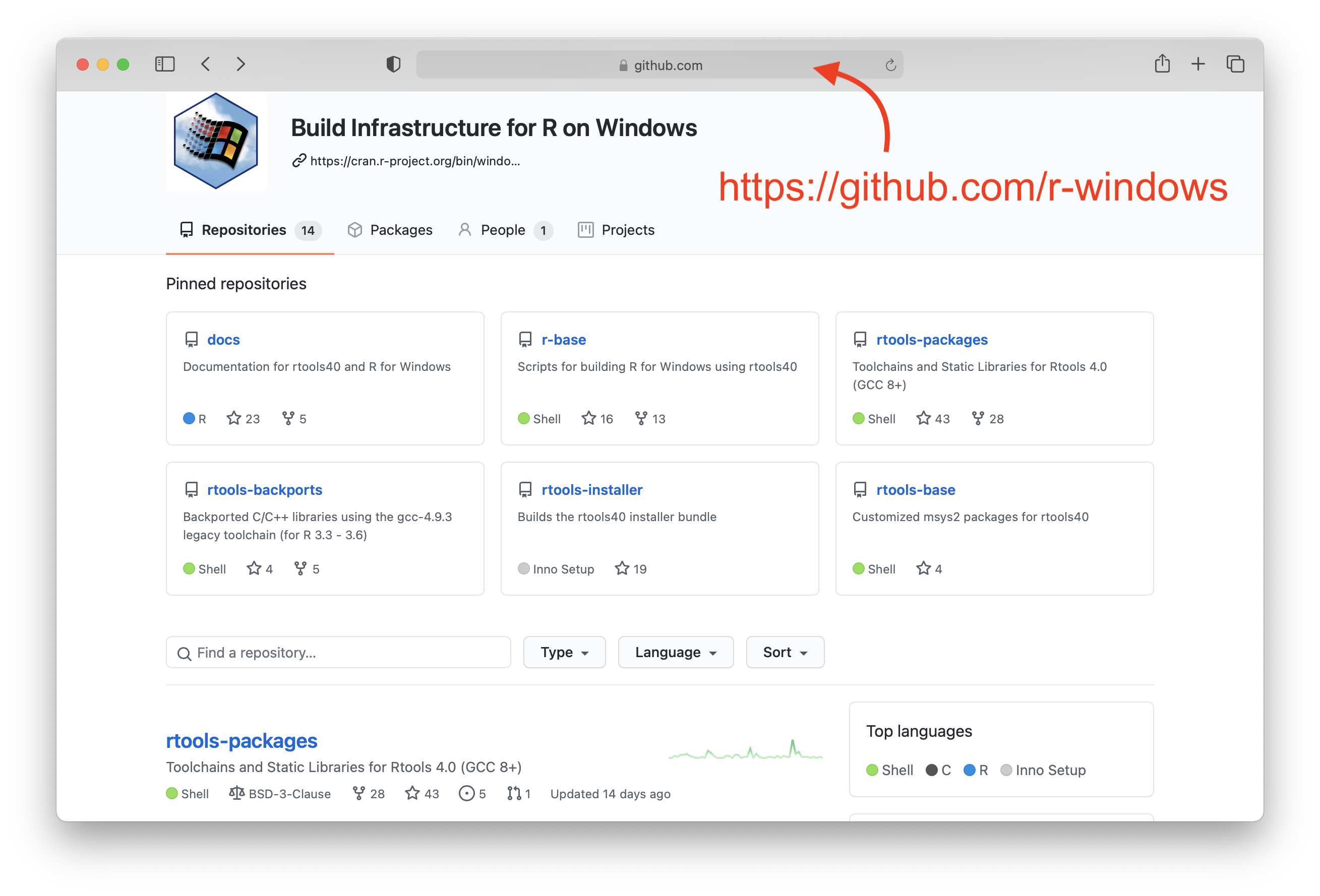

In this role as Windows maintainer, I spent quite some time over the past few years modernizing the infrastructure to build R and the compilers and system libraries needed by R packages, collectively known as Rtools.

This process is now entirely automated and transparent and reproducible, such that everyone can see how this works, and get involved.

And at the same time I tried to redesign Rtools to reduce friction for Windows users to develop R and packages on their machine.

So these days if you install Rtools4 and R, things should generally just work. Which wasn't always the case.

If you are interested in this, check out the r-windows organization on GitHub.

That's a bit of background about me. Let's talk about R-universe.

---
class: inverse, center, middle

# What is R-universe?

---

# What is R-universe

Experimenting with new ideas for _publishing_ and _discovering_  research / software in R, based on 10 years of rOpenSci experience:

- Personal CRAN-like repos
  - Extensible build system based on git
  - Live reproducible Rmd articles
  - Easily browsing research and software
  - Dashboards
  - API access
  - Global feeds

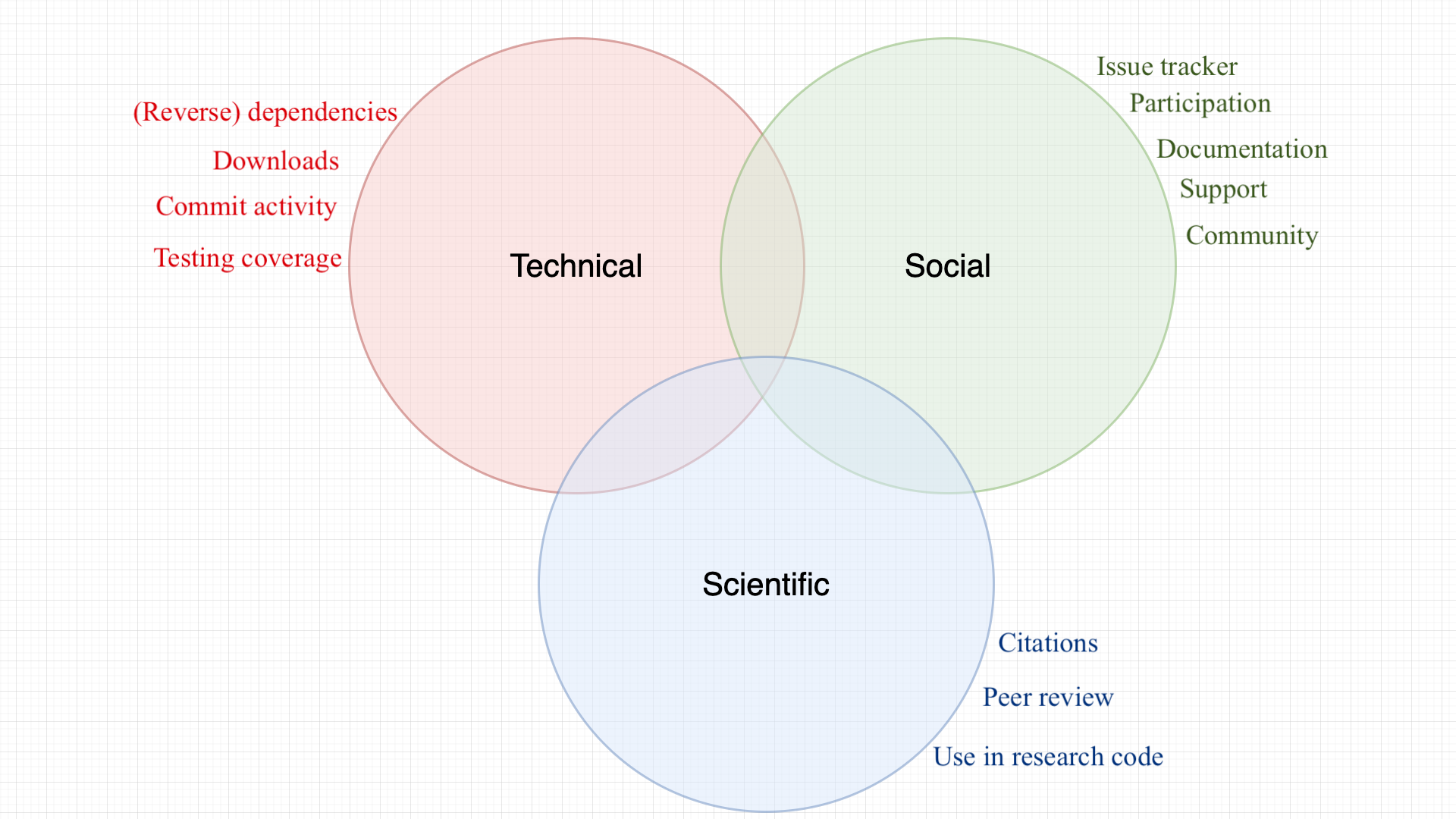

  - Software health metrics
  - Dependency network analysis
  - Finding software citations
  - Etc

These ideas are still developing as things are taking shape.

???

R-universe is sort of an umbrella project, under which we are experimenting with many ideas that we have developed over the past years in rOpenSci, to take open-science with R to the next level.

In essence, R-universe is an _open_ platform for publishing and discovering research and research software written in R.

The platform has many features and components:

In R-universe, everyone has a personal CRAN-like package repository, which is backed by a modern build system,
which also allows you to publish automatically rendered Rmarkdown articles.

And then on top of that, R-universe has extensive dashboards and feeds and apis and metrics, and so on, to make this content accessible and discoverable.

---

# How it works (in a nutshell)

Every organization or user has a unique domain for publishing their content.

## `https://<user>.r-universe.dev`

Where `<user>` is a GitHub account name (user or organization).

On this domain you can find:

???

How does it work?

In R-universe, every _user_ or _organization_ has a unique subdomain under r-universe.dev, for publishing their content.

The subdomain is mapped to your github account name, so it can either be an individual account or an team account.

For example, I publish personal content is under jeroen.r-universe.dev and rOpenSci content under ropensci.r-universe.dev.

- __CRAN-like repo__ with any R packages + win/mac binaries
 - Live rendered __Rmd articles__
 - Programmable __API access__
 - Interactive __dashboard__ for browsing and monitoring activity
 - Everything is __fully automated__
 - Metrics and other meta functionality (planned later 2021)

The R-universe platform connects these different universes with each other, though global feeds, cross referencing maintainers, etc. A bit like GitHub! But for R :-)

???

On this domain you can find a cranlike repository with R packages owned by this user or organization.

These include binaries for Windows and MacOS, and all the other things you expect from a CRAN-like repository.

You can also find all the Rmarkdown articles published by this user or organization, and a lot of meta-data.

If you open the domain in a browser, you can browse the content visually using a dashboard, but the same data is also accessible programmatically using HTTP APIs.

And again, everything is fully automated, as we will see in a second.

---
class: inverse, center, middle

# Example!

---
class: fullpage

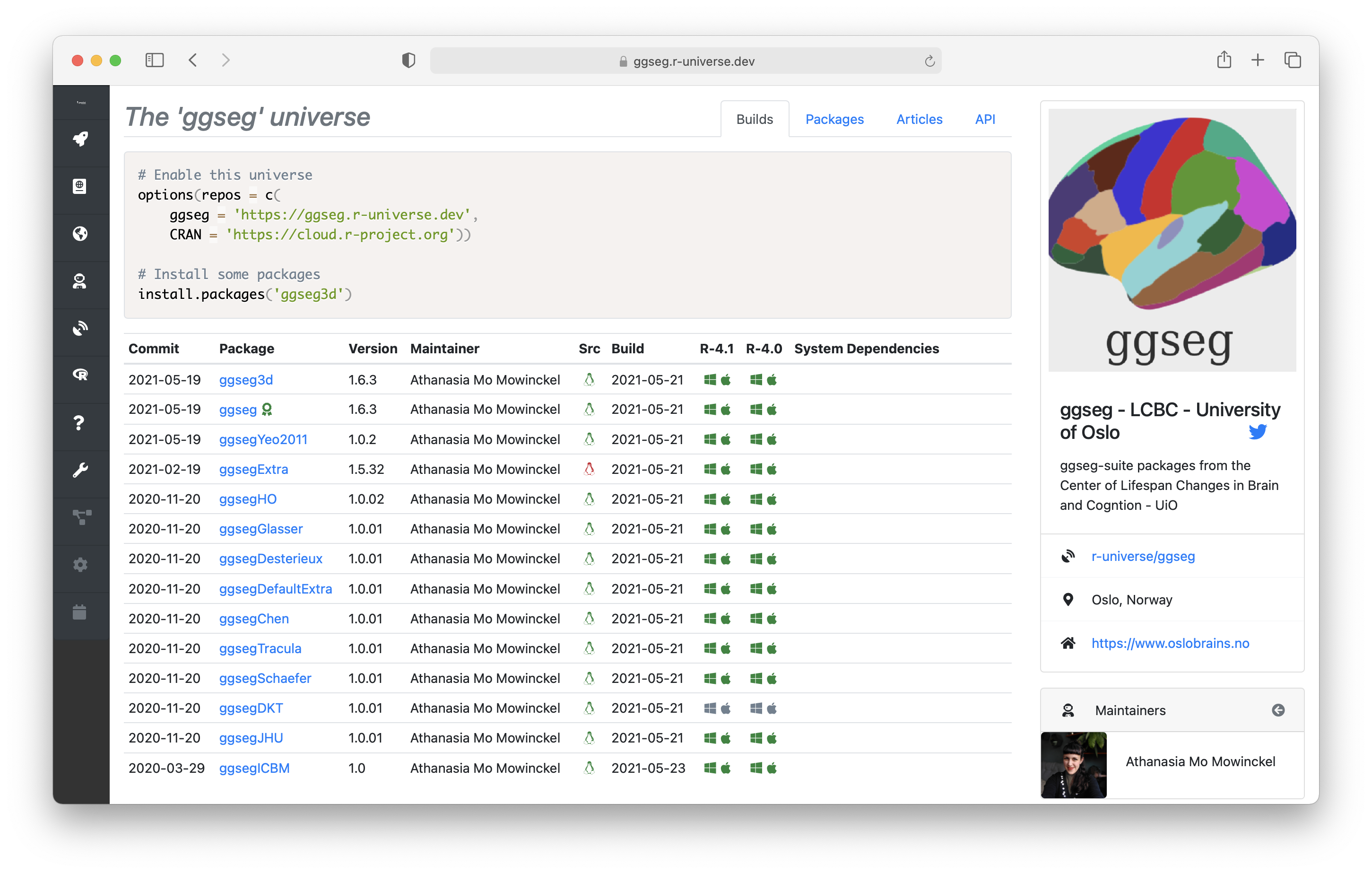

# Example: the ggseg universe

![ggseg-builds](images/ggseg-builds.png)

???

Let's look at an example.

Here we see the `ggseg` universe.
ggseg is suite of R packages developed at the University of Oslo for brain and cognition research.
Most packages are maintained by Athanasia Mowinckel.
It consists of 14 packages, one of which is also on CRAN.

---
class: fullpage

# Example: the ggseg universe

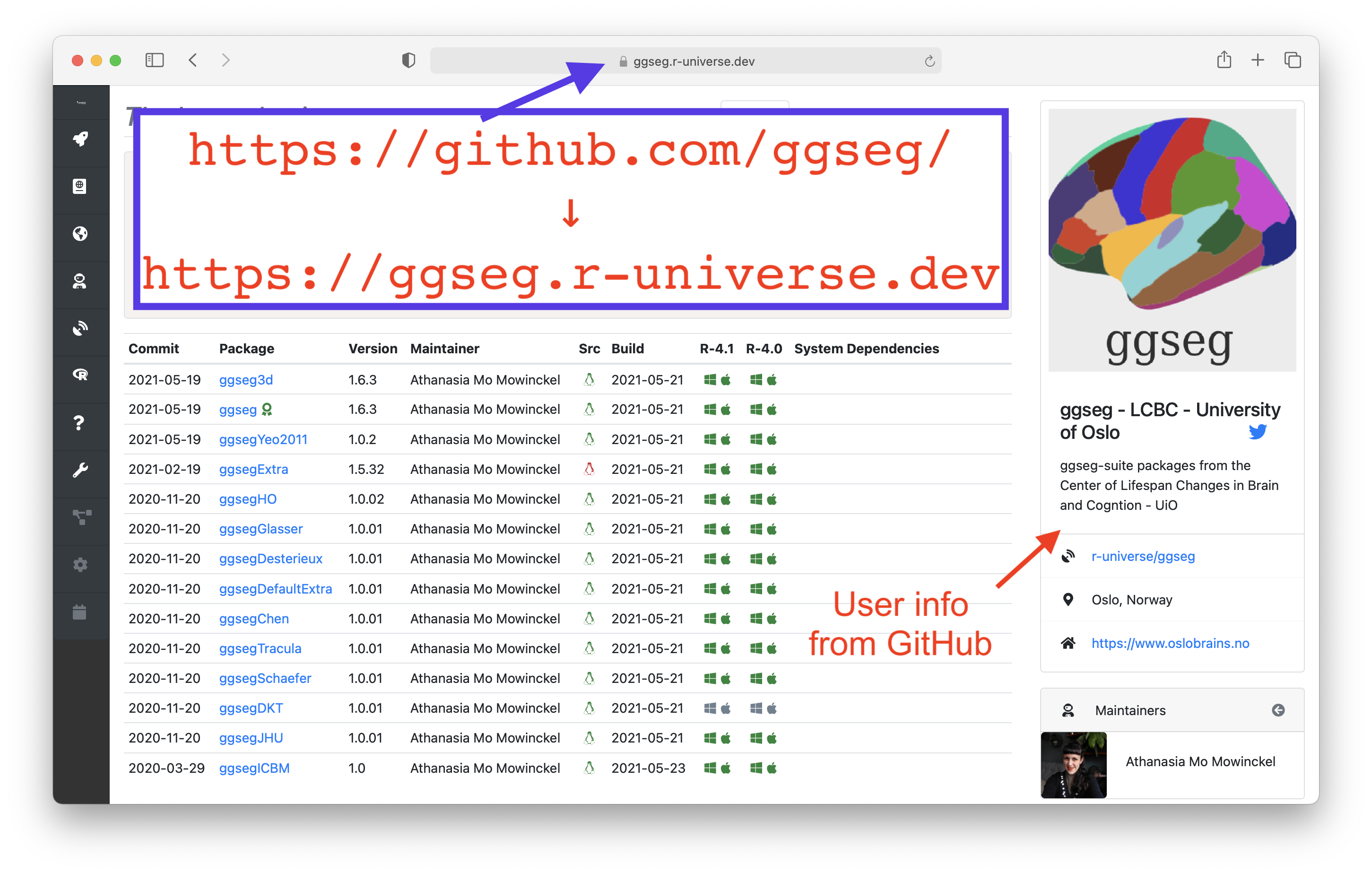

![ggseg-builds2](images/ggseg-builds0.png)

???

So again, the owner if this universe is the ggseg organization on GitHub, hence the URL for the universe is ggseg.r-universe.dev.

The dashboard also shows some information about this organization, that is taken from the GitHub profile.

---
class: fullpage

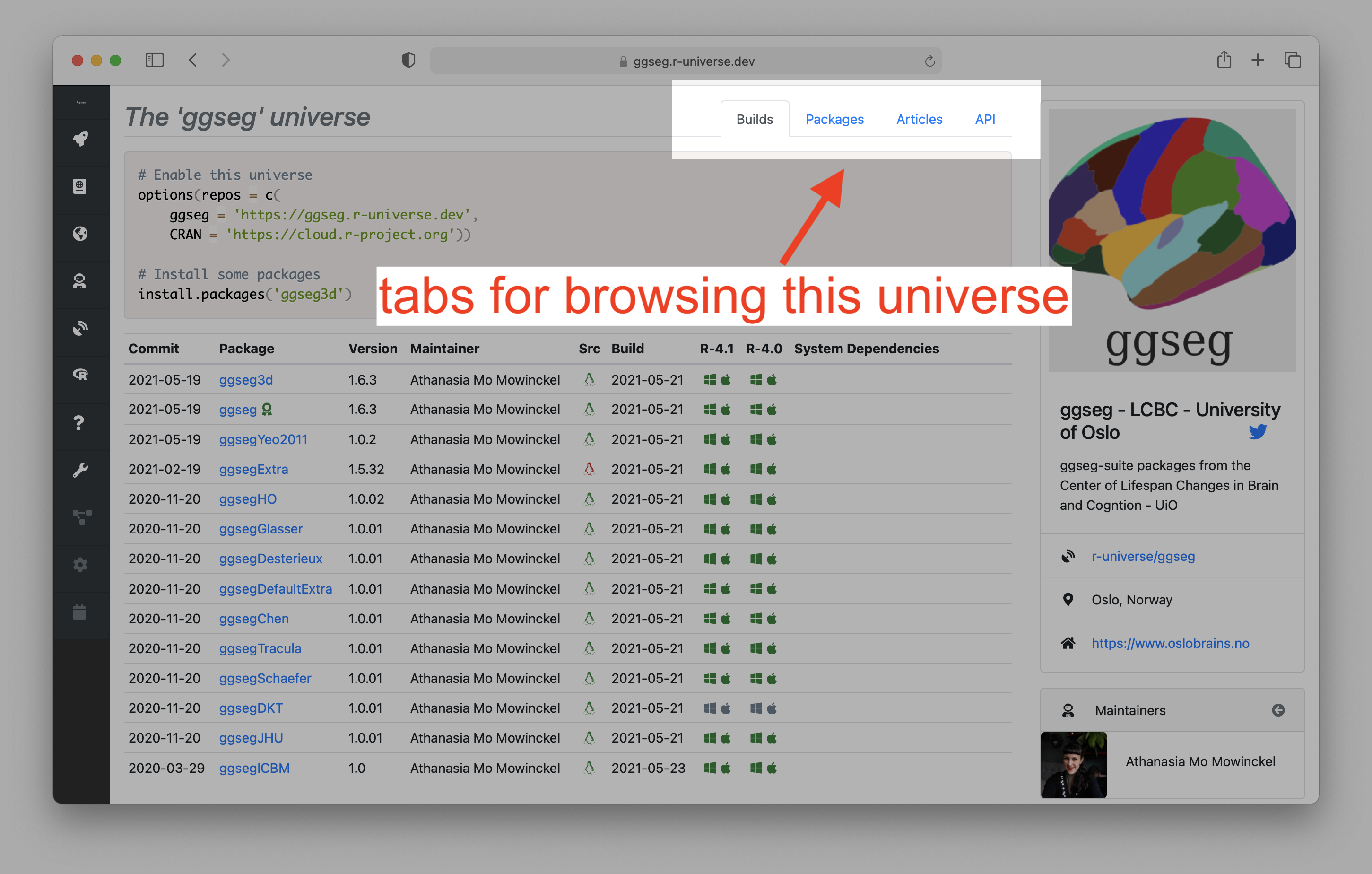

# Example: the ggseg universe

![ggseg-builds2](images/ggseg-builds1.png)

???

In the dashboard of a universe you will see these tabs that you can use to browse the content.

This may change a bit in the future as we add more functionality to the platform.

---
class: inverse, center, middle

# Browsing R packages in a universe

???

Let's first look at the most important thing: the packages.

---

# Example: the ggseg universe (packages)

![ggseg-builds3](images/ggseg-builds3.png)

???

The _builds_ tab shows an overview of recently updated packages, including the version and the maintainer, and the date of the most recent commit.

It also shows this green badge, when the package is available from CRAN.

And in the top it shows example code on how to install a package from this universe in R. So users can easily copy paste that.

---
class: fullpage

# Example: the ggseg universe (packages)

![ggseg-builds4](images/ggseg-builds4.png)

???

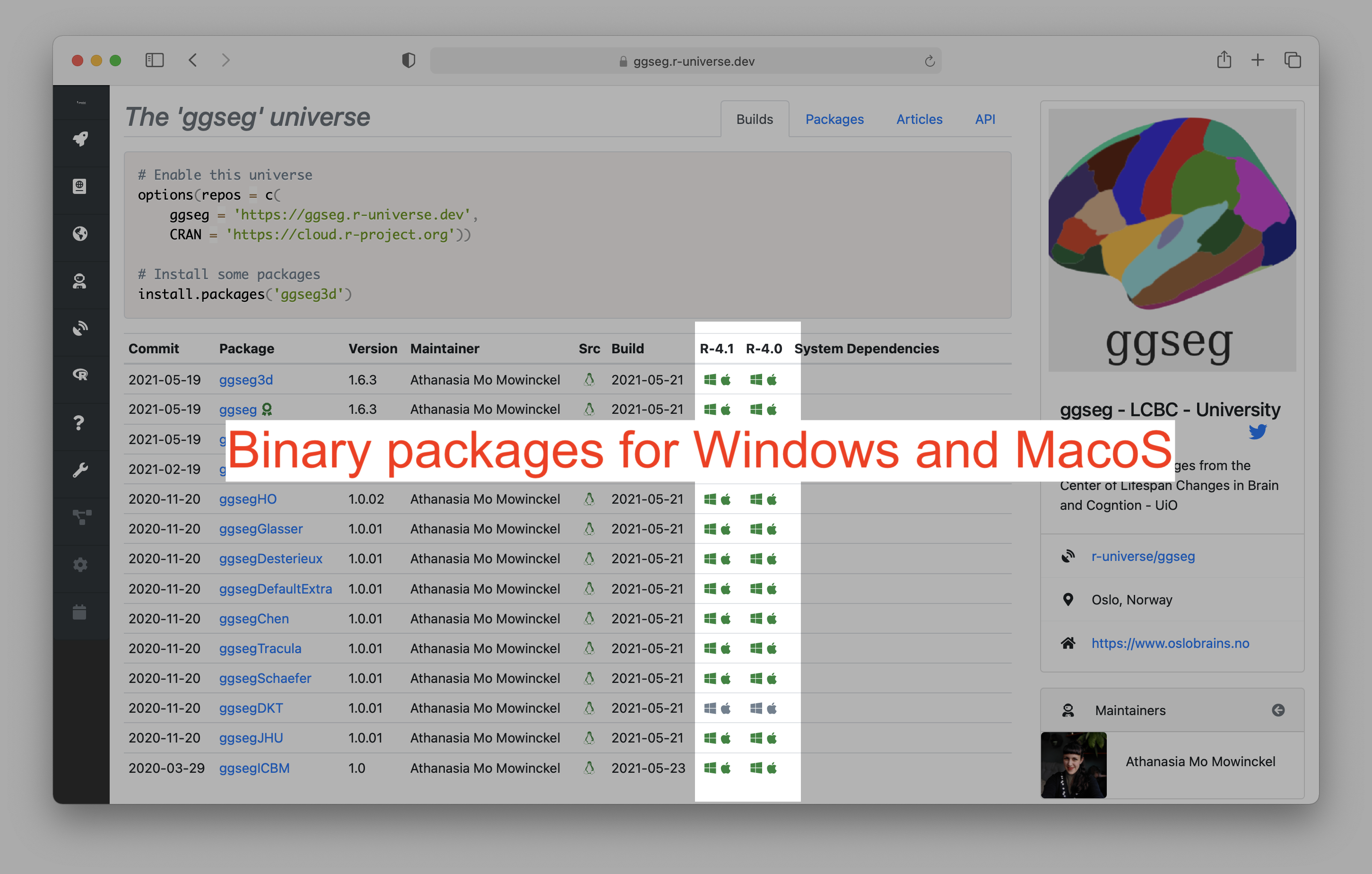

And then this column shows if binary packages are available for Windows and MacOS, which is the case for all packages.

If the icon is gray, it means that there was some warning or error running R CMD check, but the binary package is still available.

If there is no binary package you would see a red cross icon.

---
# Example: the ggseg universe (packages)

### Users install simply using `install.packages`.

```r
# Enable this universe
options(repos = c(
    ggseg = 'https://ggseg.r-universe.dev',
    CRAN = 'https://cloud.r-project.org'))

# Install some packages
install.packages('ggseg3d')
```

???

As said, the top of the page showed example code of how a user would install a package form this universe.

The easiest way is setting the `repos` option in R as shown above.

So we also specify CRAN as the second repository, which may be needed for dependencies of this package.

With this code, the dependencies of the package that are available from the ggseg universe are taken from there, and the remaining dependencies are installed from CRAN.

## No `remotes` / `devtools`/ `rtools` required !!

???

Note that all of this is done using the base R package manager, exactly as when you install from CRAN. On Windows and MacOS, the user does not need any complicated tools and libraries to build packages from source.

---
class: fullpage

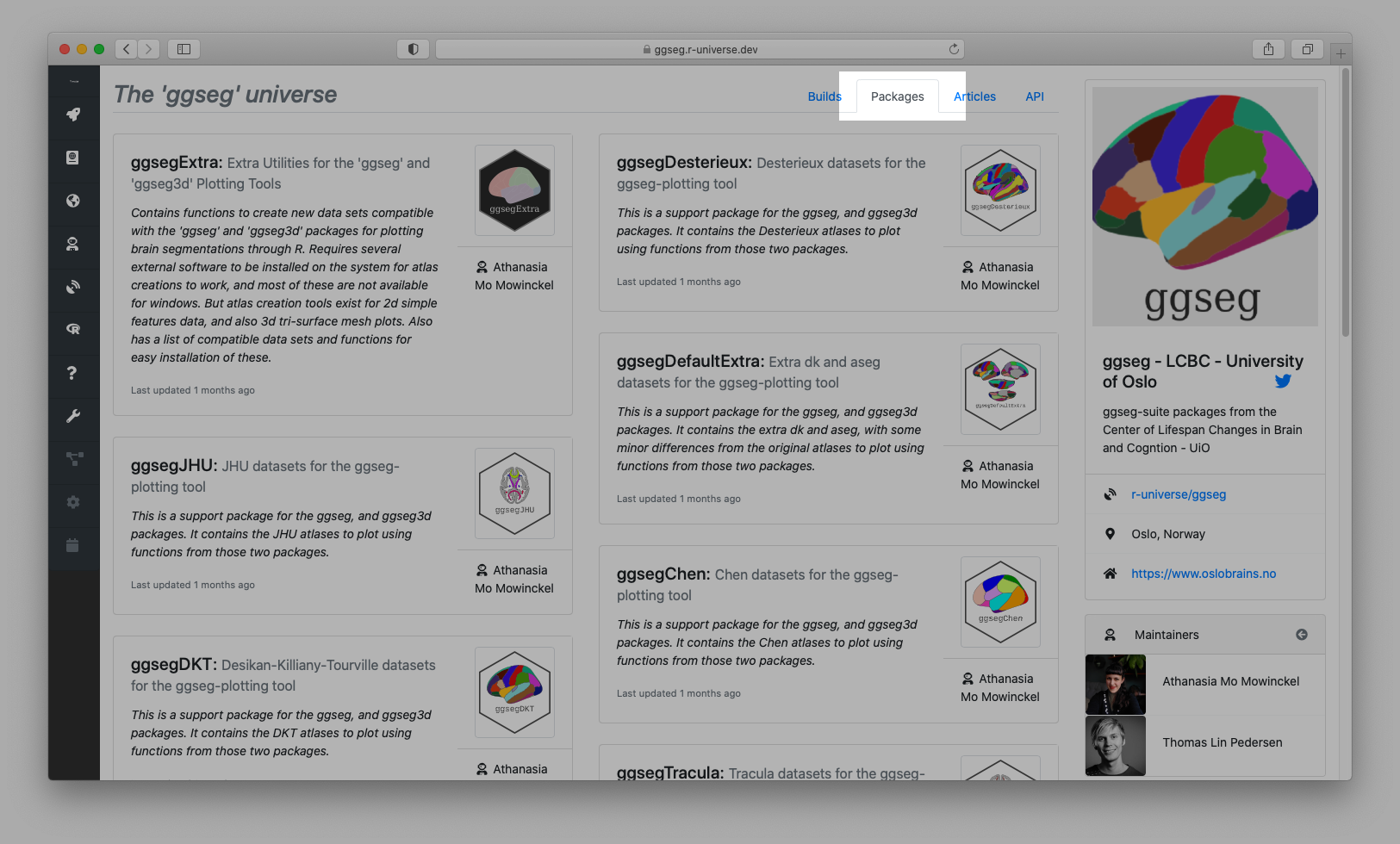

# Example: the ggseg universe (packages)

![ggseg-packages0](images/ggseg-packages0.png)

???

Let's go to the second tab in the dashboard, called packages.

---
class: fullpage

# Example: the ggseg universe (packages)

![ggseg-packages](images/ggseg-packages.png)

???

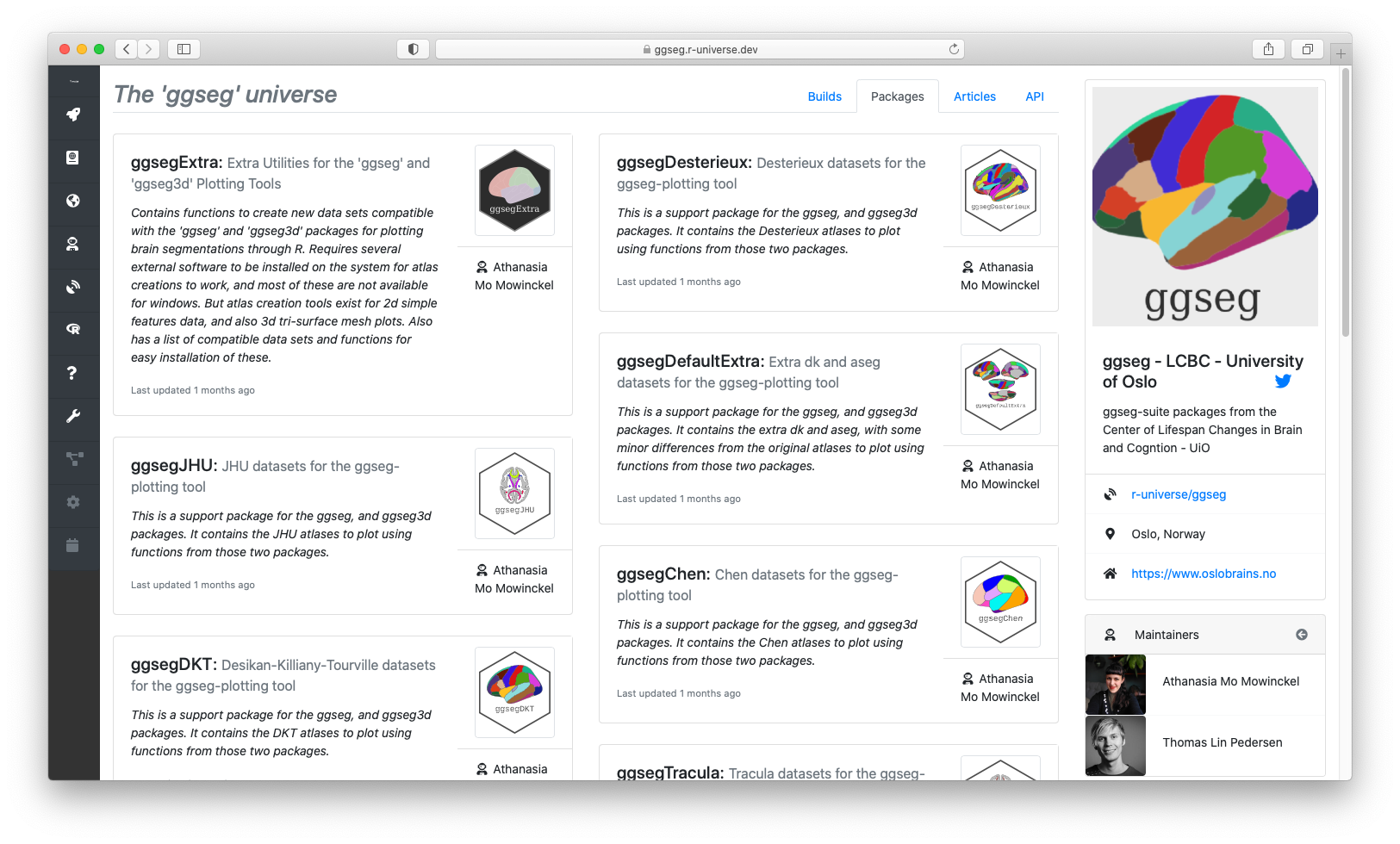

This shows a more detailed information about packages, mostly taken from the package description files.

---
class: fullpage

# Example: the ggseg universe (packages)

![ggseg-packages2](images/ggseg-packages1.png)

???

So it shows the title and description, the maintainer, and again when the package was last updated...

---
class: fullpage

# Example: the ggseg universe (packages)

![ggseg-packages1](images/ggseg-packages2.png)

???

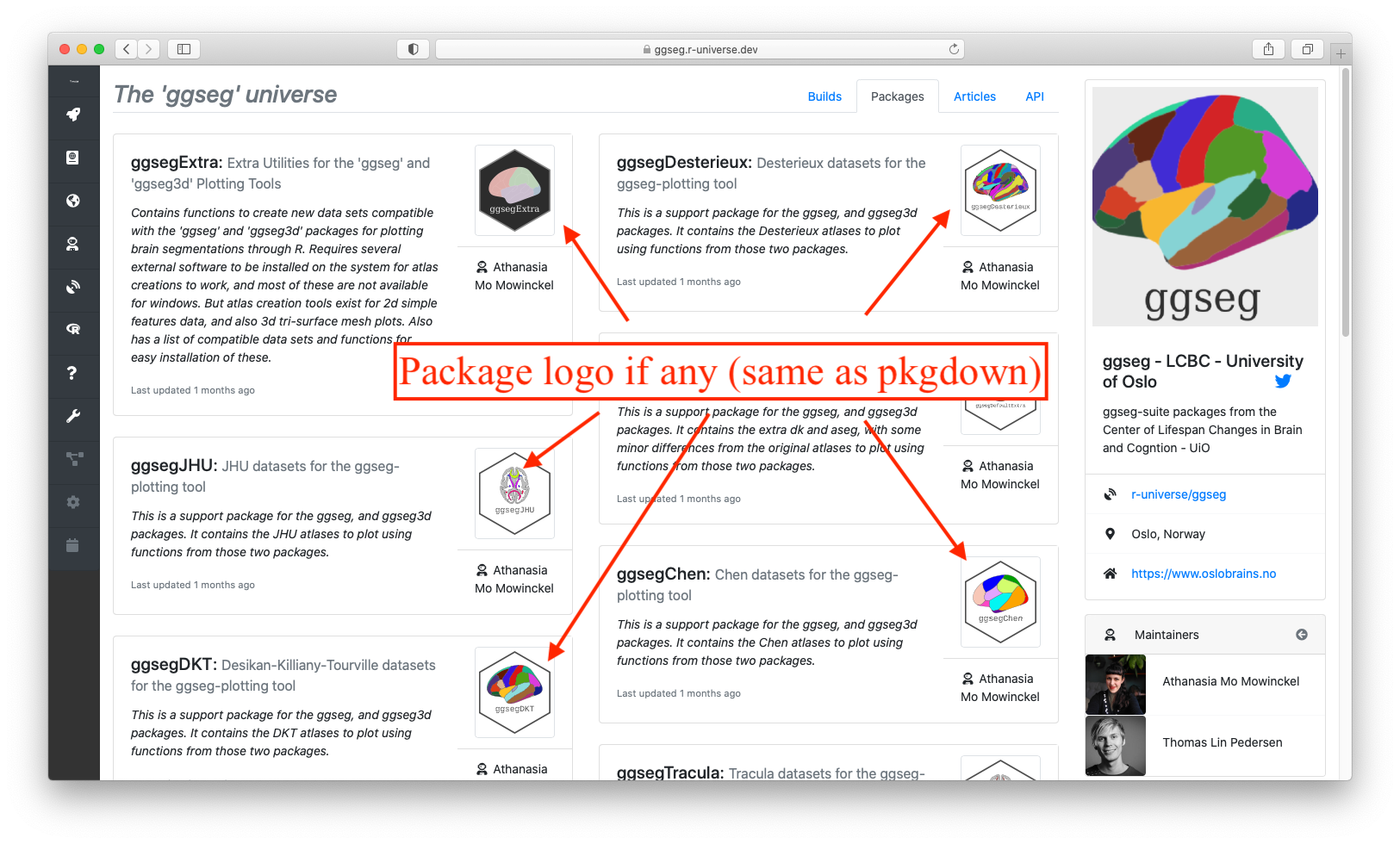

And if the package has a logo, this is also shown in the dashboard.
There are a few standard ways that you can specify a logo for your package, we use the same rules as pkgdown, to find the logo.

You can get much more detailed information though the APIs.

---
class: inverse, center, middle

# Browsing articles in a universe

???

Alright, lets talk about articles.

Besides packages, R-universe is intended a place for publishing articles.

---
class: fullpage

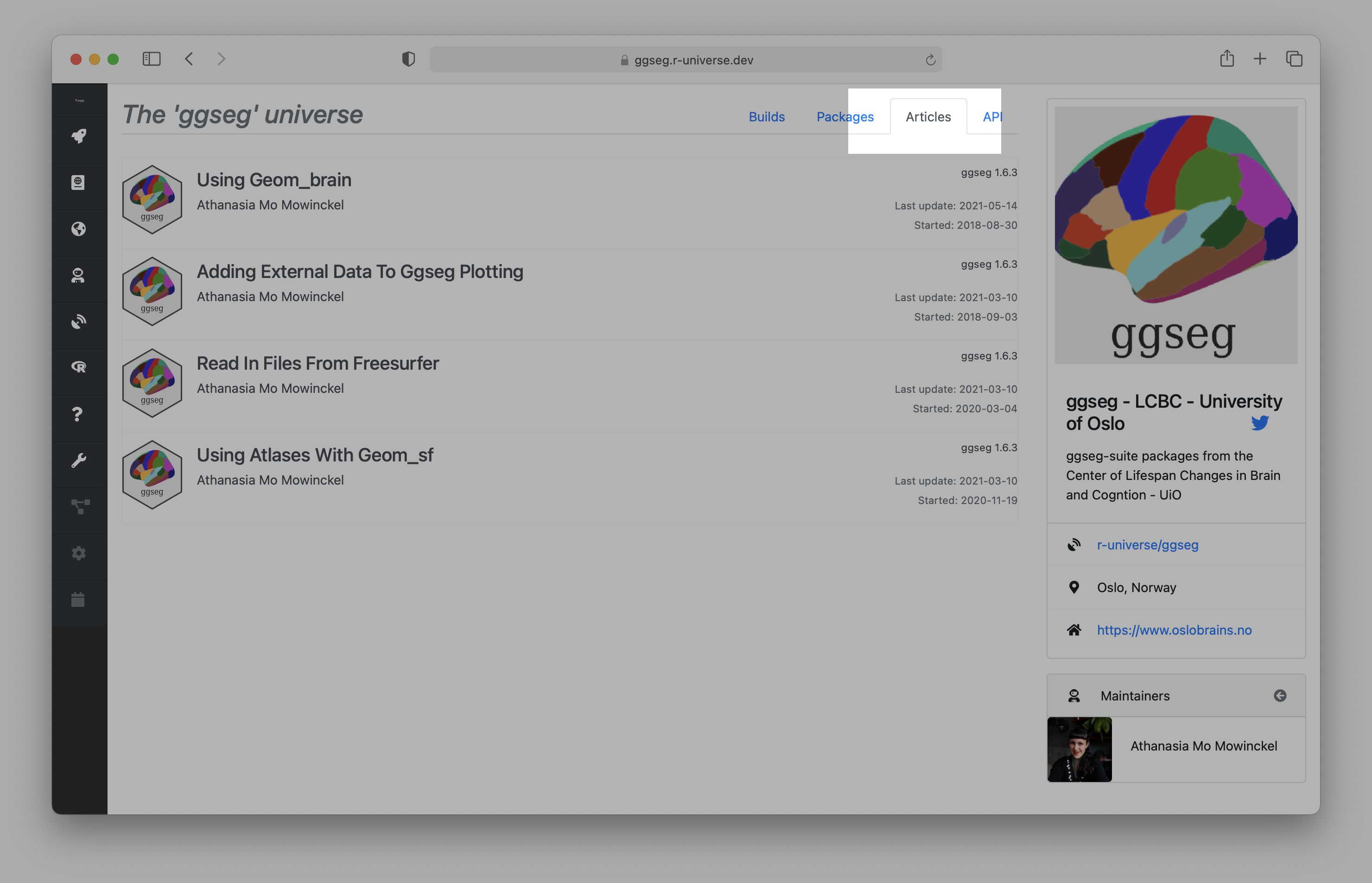

# Example: the ggseg universe (articles)

![ggseg-articles0](images/ggseg-articles0.png)

???

You can see all the articles from a given user or organization under the articles tab.

---
class: fullpage

# Example: the ggseg universe  (articles)

![ggseg-articles1](images/ggseg-articles1.png)

???

Articles get automatically rendered on our build system using the vignette system in R.

However, articles don't have to be limited to software documentation.

As I will explain later, you can publish any Rmarkdown article in your universe. For example a research paper or tutorial, or homework assignment.

---
class: fullpage

# Example: the ggseg universe  (articles)

![ggseg-article](images/ggseg-article.png)

???

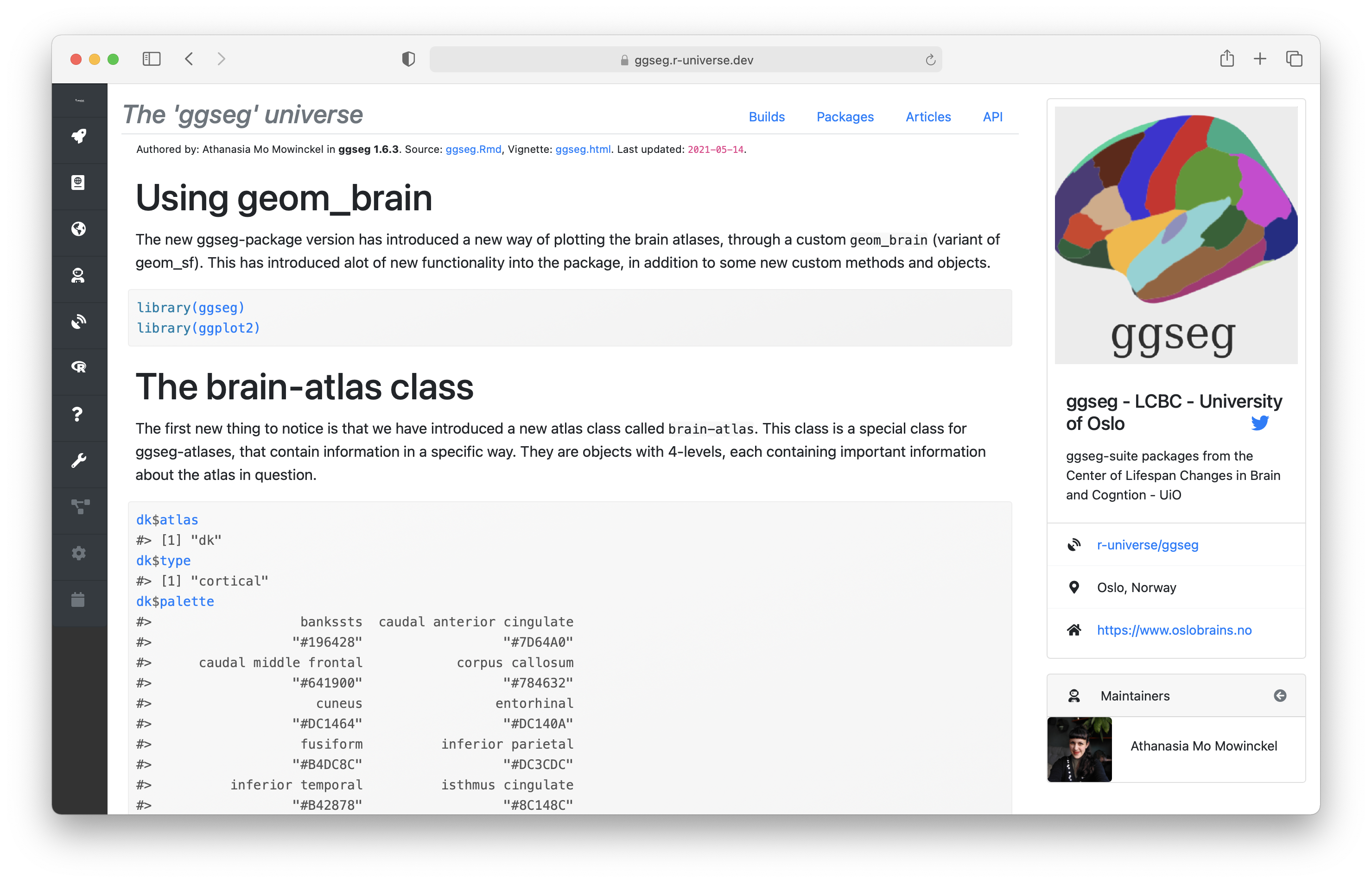

You can easily browse these articles within the dashboard.

The content of these articles is taken from vignettes, rendered with in a consistent html theme,
that is the same across the system.

So hopefully this makes it more pleasant to browse and read different articles.

---
class: fullpage

# Example: the ggseg universe (articles)

![ggseg-article1](images/ggseg-article1.png)

???

So you can browse these articles from within the dashboard, but the top of the article
also shows the direct links to the input rmarkdown file and output html file.

So you can also link to the html document directly.

---
class: inverse, center, middle

# API access to all the data !

???

An important feature of R-universe is that we provide programmatic access to all
the content and metadata.

---
class: fullpage

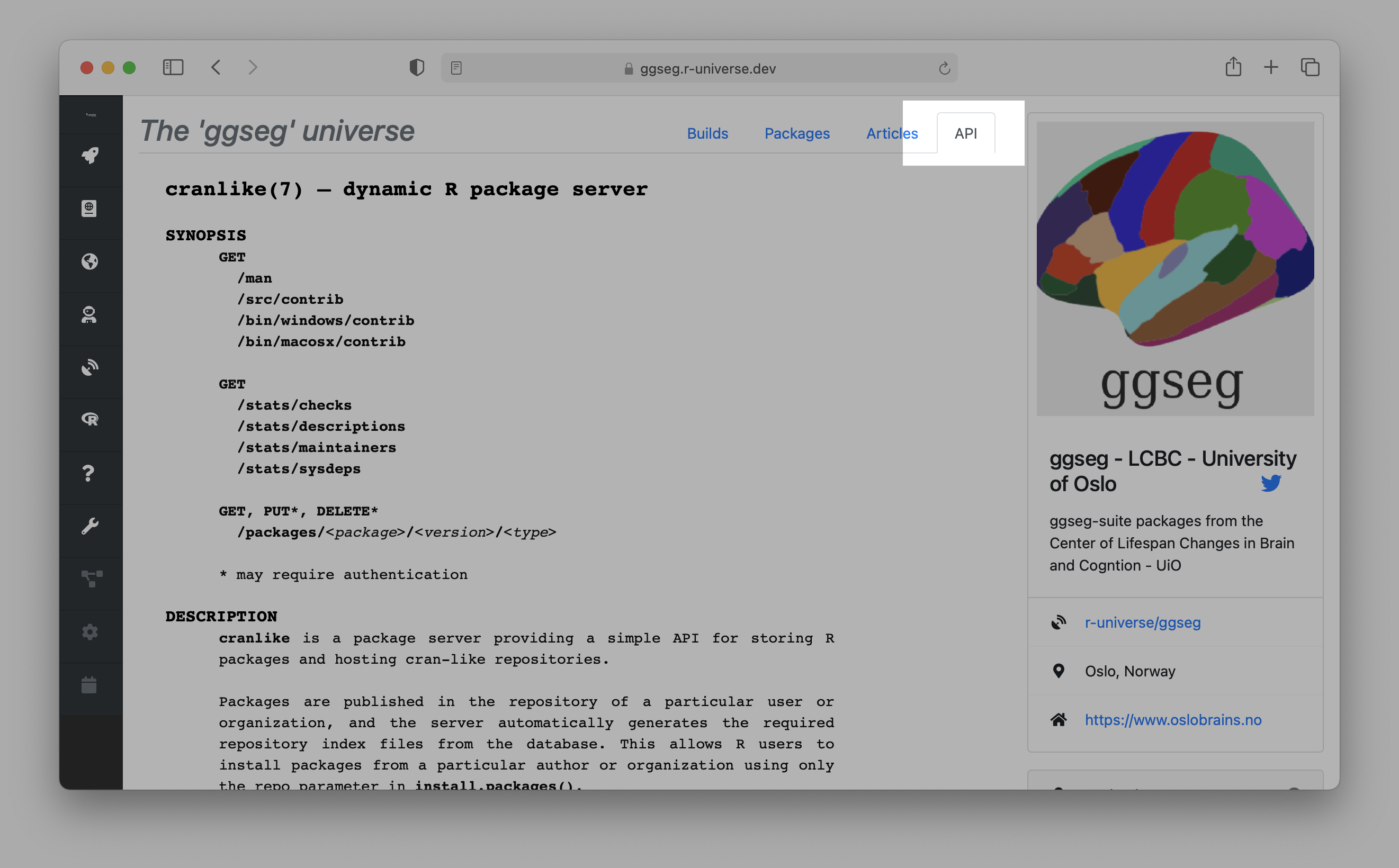

# Example: the ggseg universe  (APIs)

![ggseg-api0](images/ggseg-api0.png)

???

An important part of open science is that content is not locked in to some platform, but accessible in other ways.

All of the data from the dashboard, and much more information about the packages and articles
can be retrieved though APIs.

The API tab shows some documentation from the most important endpoints.

---
class: fullpage

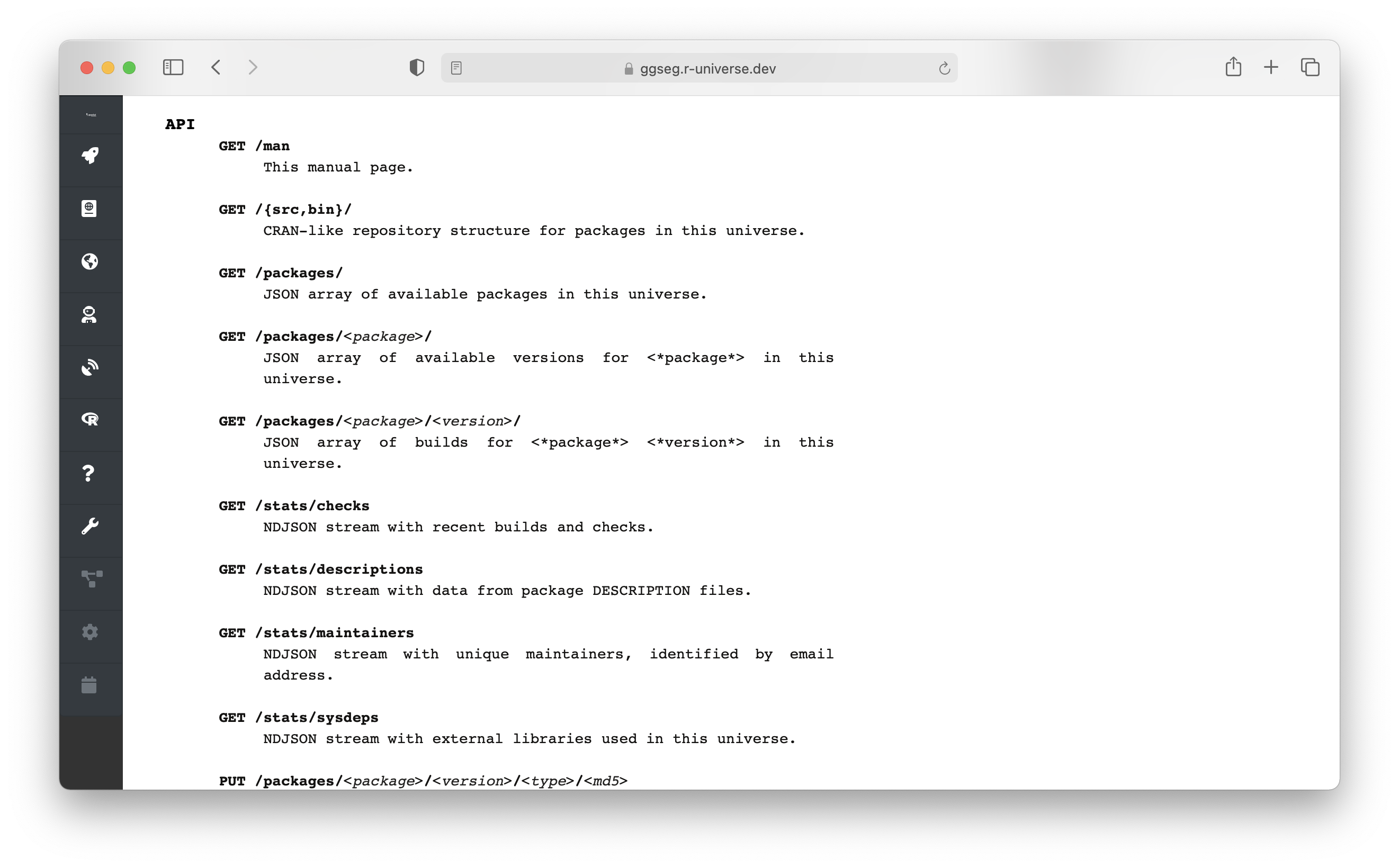

# Example: the ggseg universe (APIs)

![ggseg-api0](images/ggseg-api2.png)

???

That looks like this. The APIs are still under development but you can play around with it.

---
class: fullpage

# Example: the ggseg universe  (APIs)

![ggseg-json](images/ggseg-json.png)

???

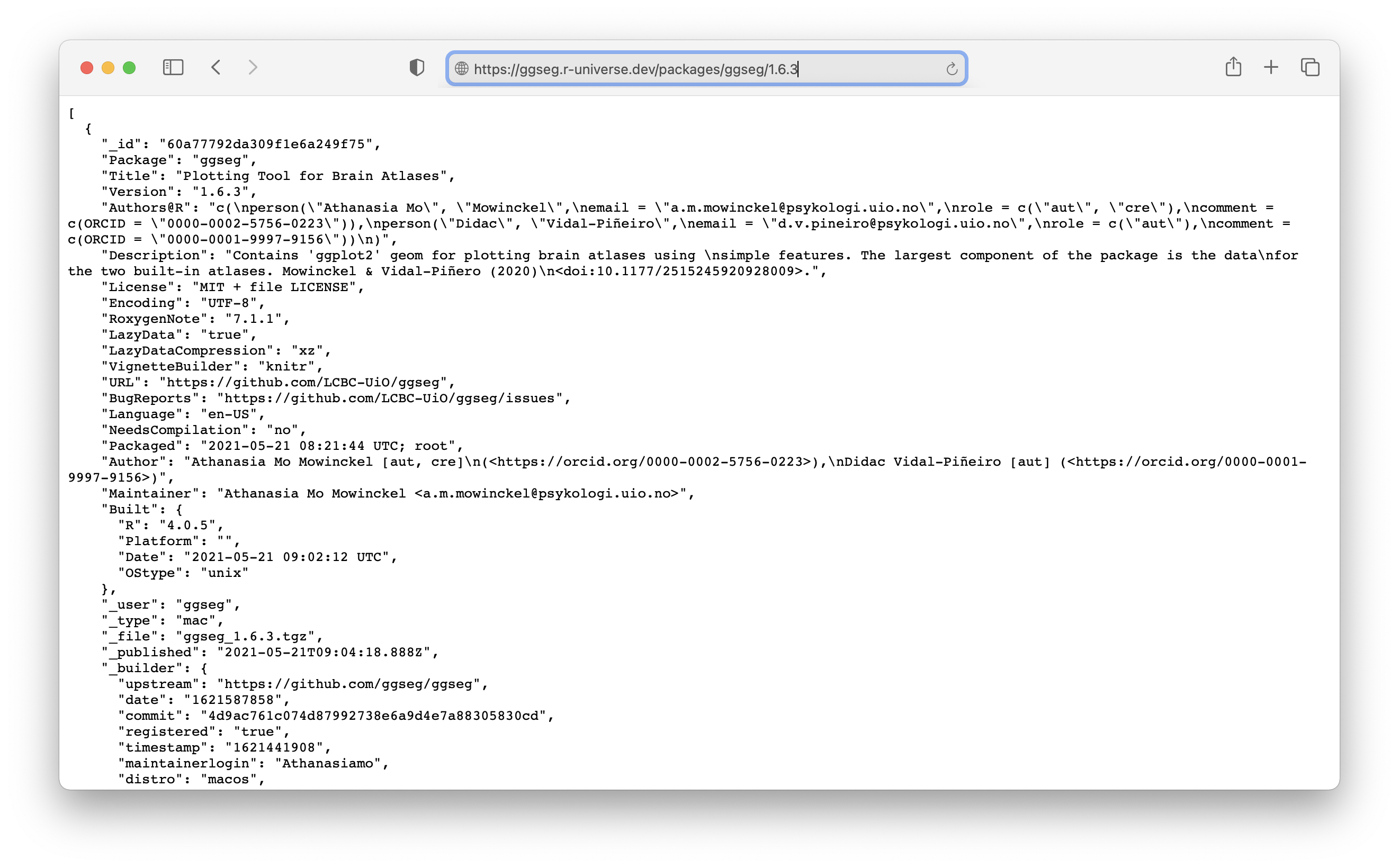

For example the `/packages` endpoint gives all the artifacts and information from the database about a given version of a given package.

So in this example it returns all the data about ggseg. Which is a json list, where each entry is a package file. So in this case there will probably be 5 entries: one source package, two windows binaries and two macos binaries.

---
# Example: the ggseg universe  (APIs)

Use `jsonlite` to read data in R:

```r
library(jsonlite)
ggseg <- fromJSON('https://ggseg.r-universe.dev/packages/ggseg/1.6.3')
```

Aggregate data uses ndjson so you need `jsonlite::stream_in()`:

```r
library(jsonlite)

# All package description data
descriptions <- stream_in(url('https://ggseg.r-universe.dev/stats/descriptions'))

# All articles
vignettes <- stream_in(url('https://ggseg.r-universe.dev/stats/vignettes'))

# Check runs
checks <- stream_in(url('https://ggseg.r-universe.dev/stats/checks'))
```

???

And of course you can read all of this in R. I'll leave it up to you to try and run this code.

Once thing to note is that many endpoints in R-universe use ndjson format, which is a streaming version of json. And therefore you need to use `stream_in` if you want to read with jsonlite.

Or an equivalent function to read ndjson from your favorite json library.

---
class: inverse, center, middle

# For who is R universe intended?

???

Alright so that was a brief tour of what we currently have.

Let's take a step back.

Why are we building this? Who can use this?

---
# For who is R universe intended?

## Anyone can start a universe !

Example use cases

- Both for personal and organizations.
 - Packages do NOT need to be on CRAN. In your universe you make the rules!
 - Experimental projects

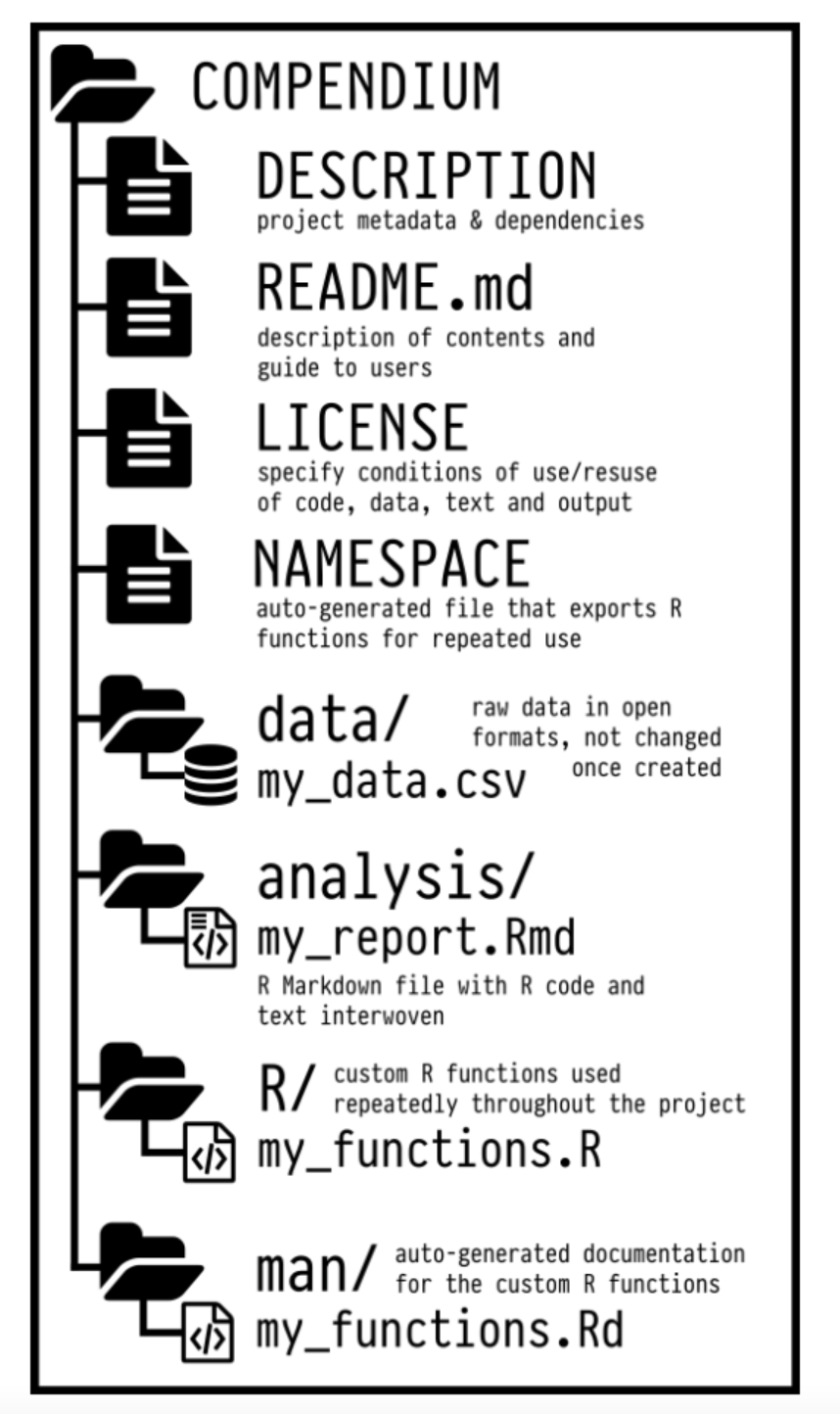

 - Research compendia packages
 - Homework assignments
 - Dev versions of CRAN packages

Package git repos do not need to be in the same GitHub user/org as the universe. You can even add packages from Gitlab or another Git server. You only need the GitHub username for the universe itself.

???

We think there are many different use cases of an R publishing space for your personal work or your organization or research group.

Yes, the system is built around the concept of R packages as the container format,
but certainly not only professional R package developers.

In your universe, you can publish whatever you want. There is no policy or policing what is allowed or not.

So sure, you can use it to publish the dev versions of CRAN packages.
But you can also think about more experimental projects, research material, even homework assignments.

---
class: inverse, center, middle

# Example use-cases for R-universe

???

So let's have a look at some examples of user and organizations that are currently using the systsem.

---
class: fullpage

# Personal package portfolio

![mohammed](images/mohammed.png)

???

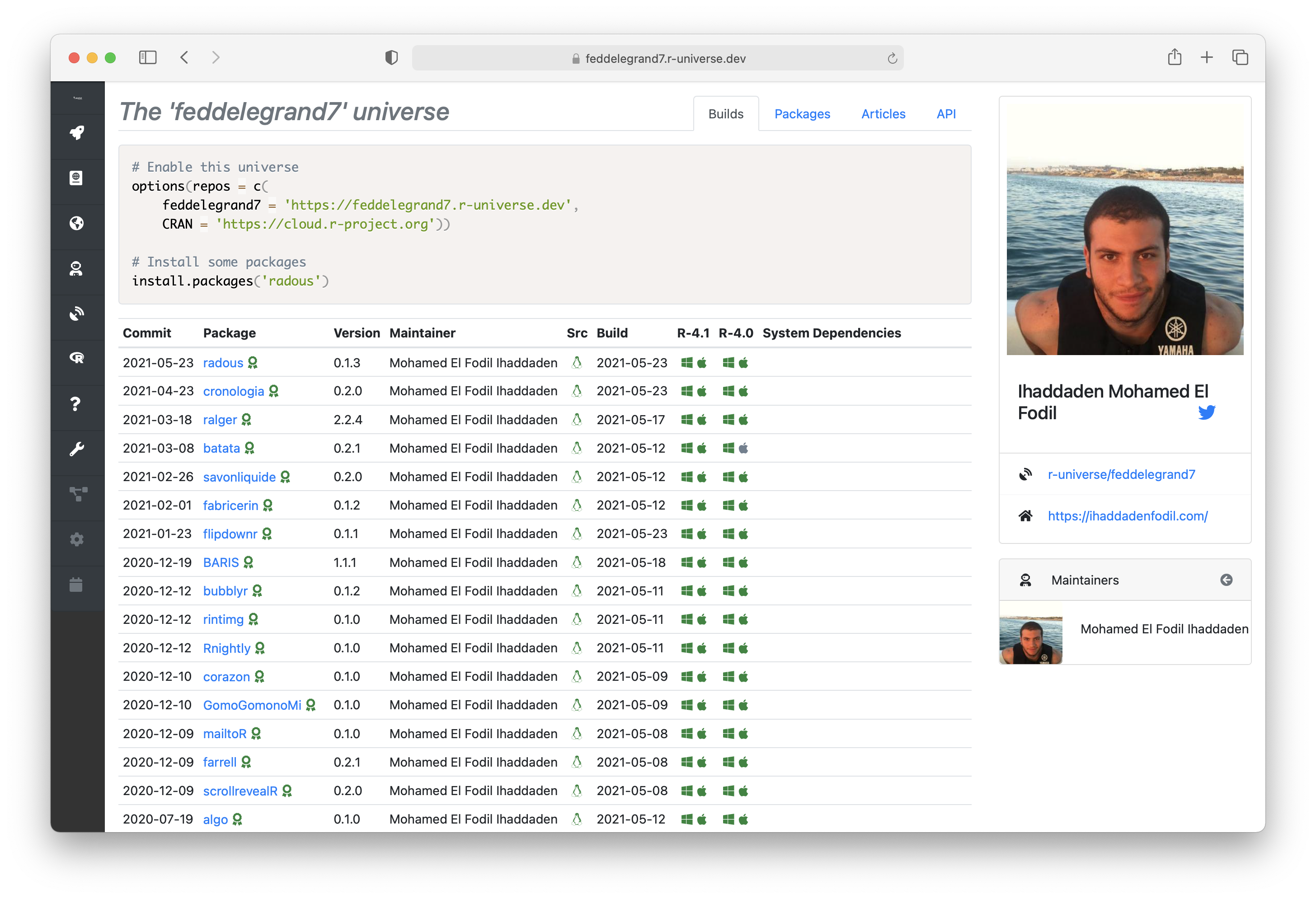

You can use your universe as your personal package portfolio.

Suppose you have written a bunch of packages, some of which may be on CRAN, or various places on Git.

You can set up a universe to showcase your work, show all the things you are working on.

---
class: fullpage

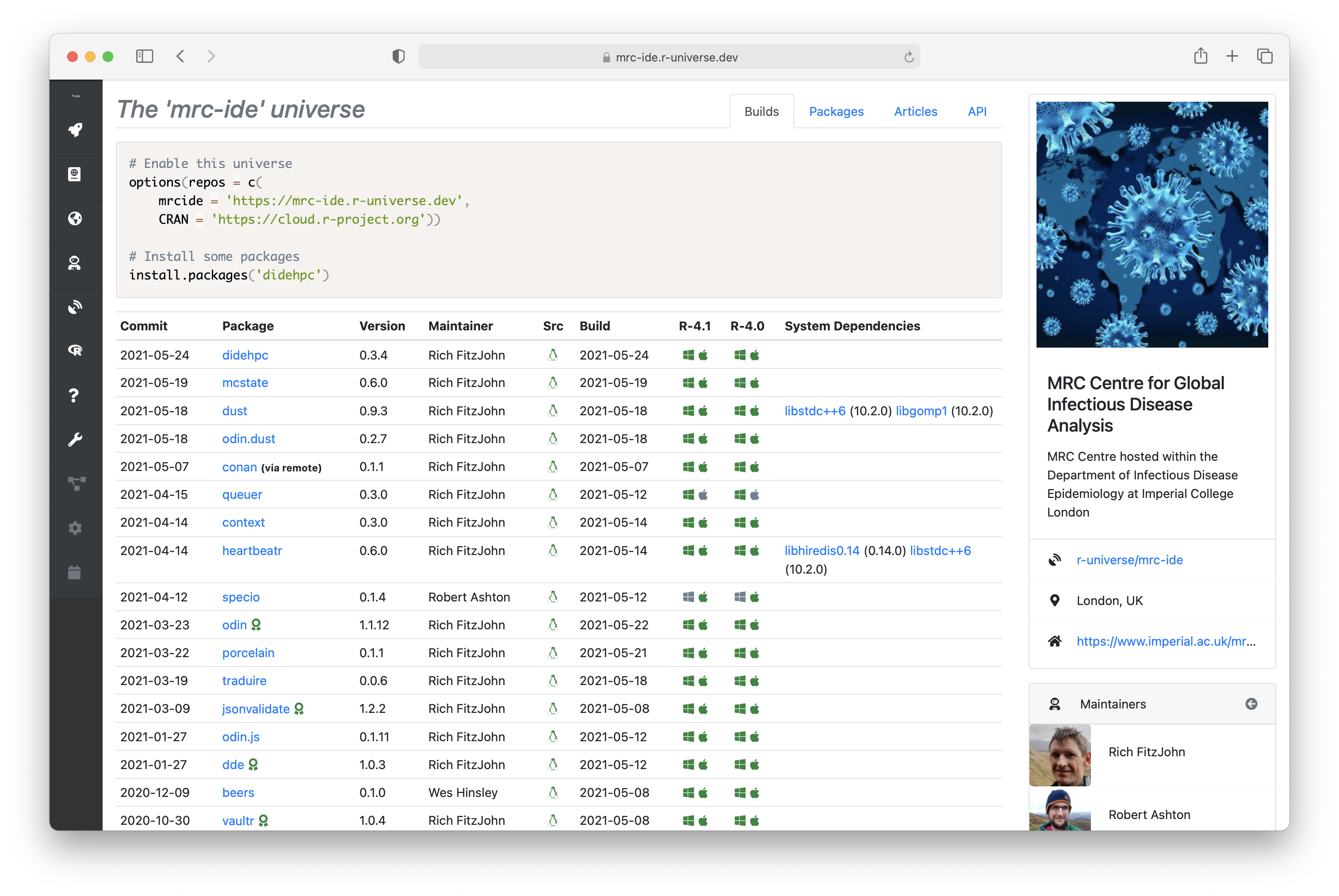

# Research software publishing

![mrc](images/mrc.png)

???

Another use case is to use your universe as an outlet for your research group.

Here is an example of a research group based at the Imperial College London.
They develop a suite of pacakges, mostly maintained by Rich FitzJohn.

These packages may not be suitable for CRAN, or it is just too much pain to release it all to CRAN. So they just publish the source code on GitHub.

By creating a universe, they can increases the exposure of their work, make software more accessible and discoverable for users, rather than when it is only available in source somewhere on GitHub.

---
class: fullpage

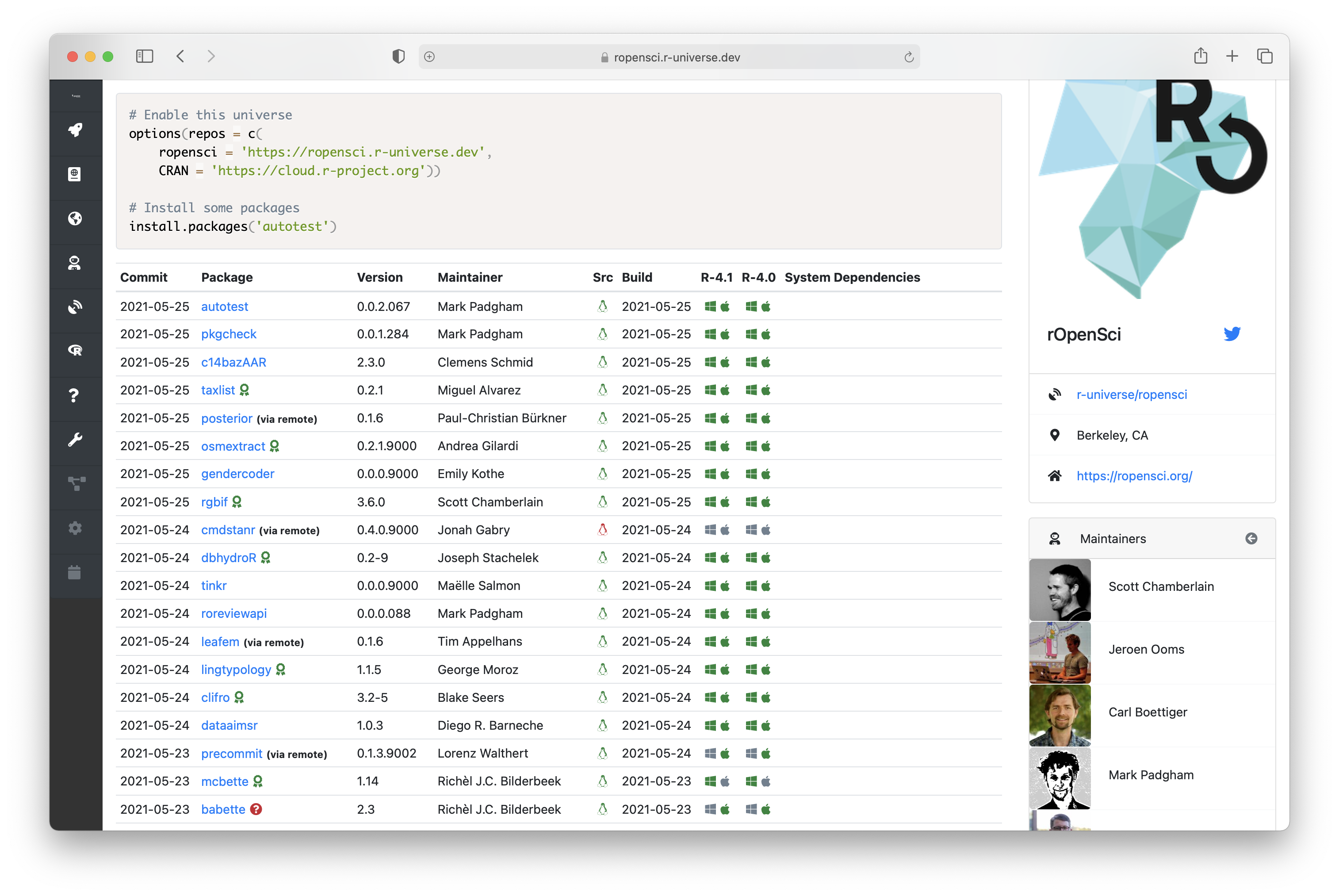

# Curated suite of packages

![ropensci](images/ropensci.png)

???

Another use case is for software curation.

The rOpenSci organization maintains a large suite of peer-reviewed and staff maintained R packages, for which we try to keep up to standard for use by scientific research.

This was of course where the idea of R-universe originates from.

So though the rOpenSci universe, it becomes easy for users to see which packages are available, and install them.

But it also helps as a monitoring tool for us, to keep an eye on development activity. And spot packages that are failing tests or do not seemed to be actively maintained anymore.

---
class: fullpage

# Dev versions for CRAN packages

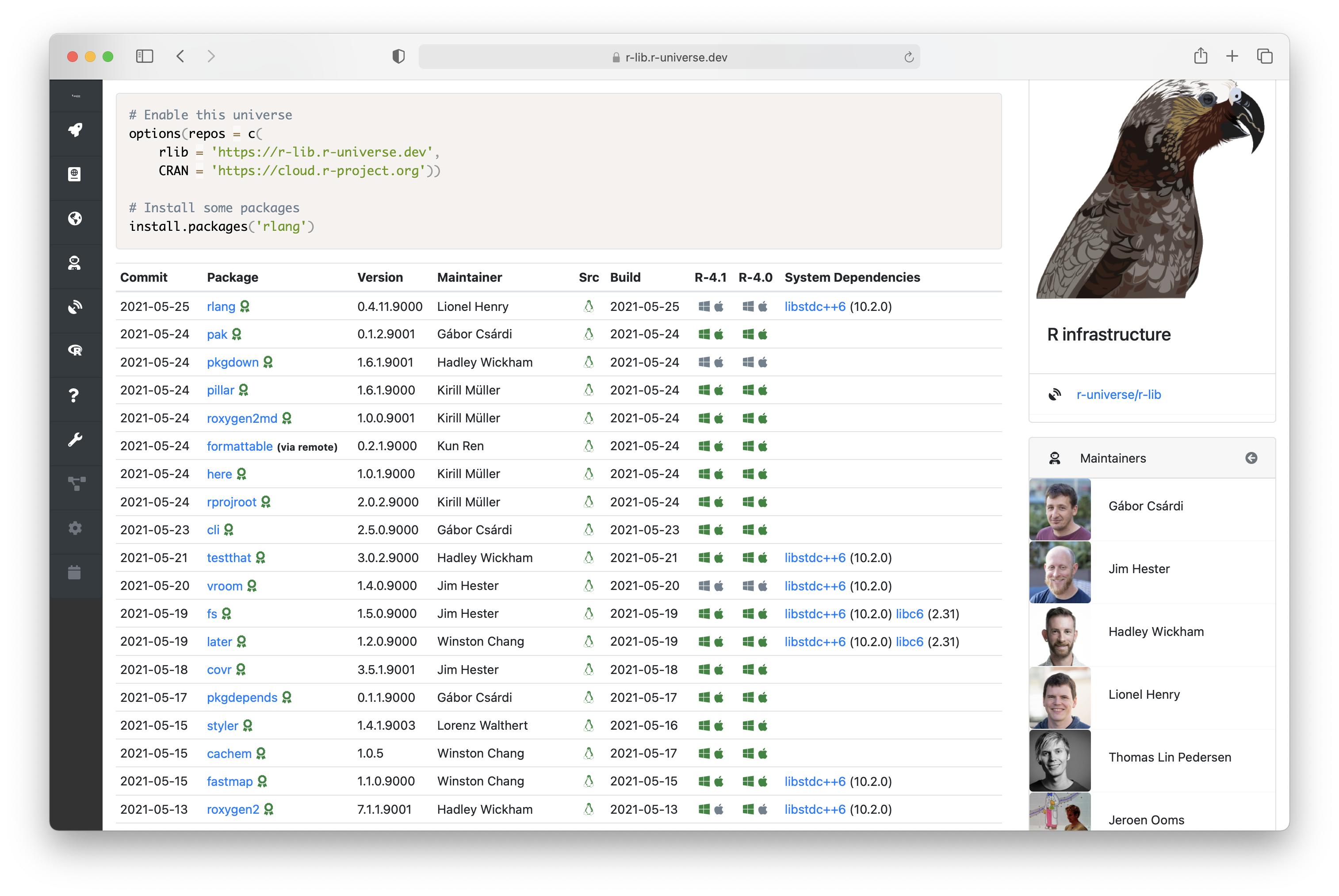

![rlib](images/rlib.png)

???

Another use case is to publish the dev-versions of CRAN packages.

Sometimes users want to test a version of a package that is not yet on CRAN, to test some new feature or bugfix.

But installing the packages from source can be quite painful, because many of these packages contain C++ code, or require some system libraries, and so on.

So in the r-lib universe you can install the latest dev version of these packages, just like as you would from CRAN. Including prebuilt binaries for Windows and MacOs.

---
class: fullpage

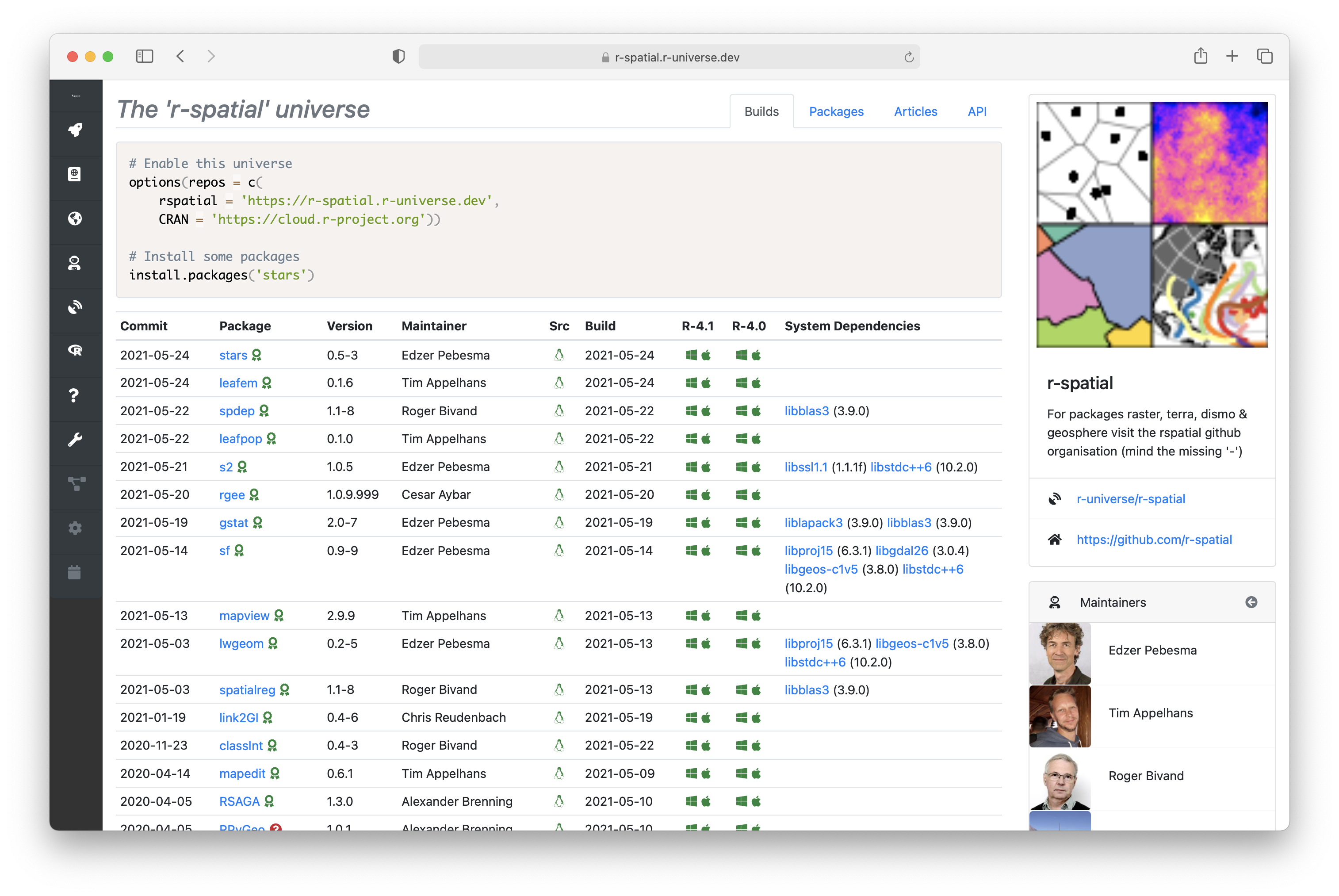

# Domain specific suite of packages

![rspatial](images/rspatial.png)

???

Finally another example is for organizations that develop an inter-dependent set of R packages from a given domain, such as the r-spatial organization.

Though their universe you can quickly see what they are currently working on, try the latest versions of the packages.

And a benefit for the developers is that the packages automatically get built and tested against the dev versions of the other packages in this universe.

So if one package makes a change that ends up breaking other packages, it becomes quickly apparent. Without having to do a manual revdep-check.

---
class: fullpage

# And many more !

![listuniverses](images/listuniverses.png)

???

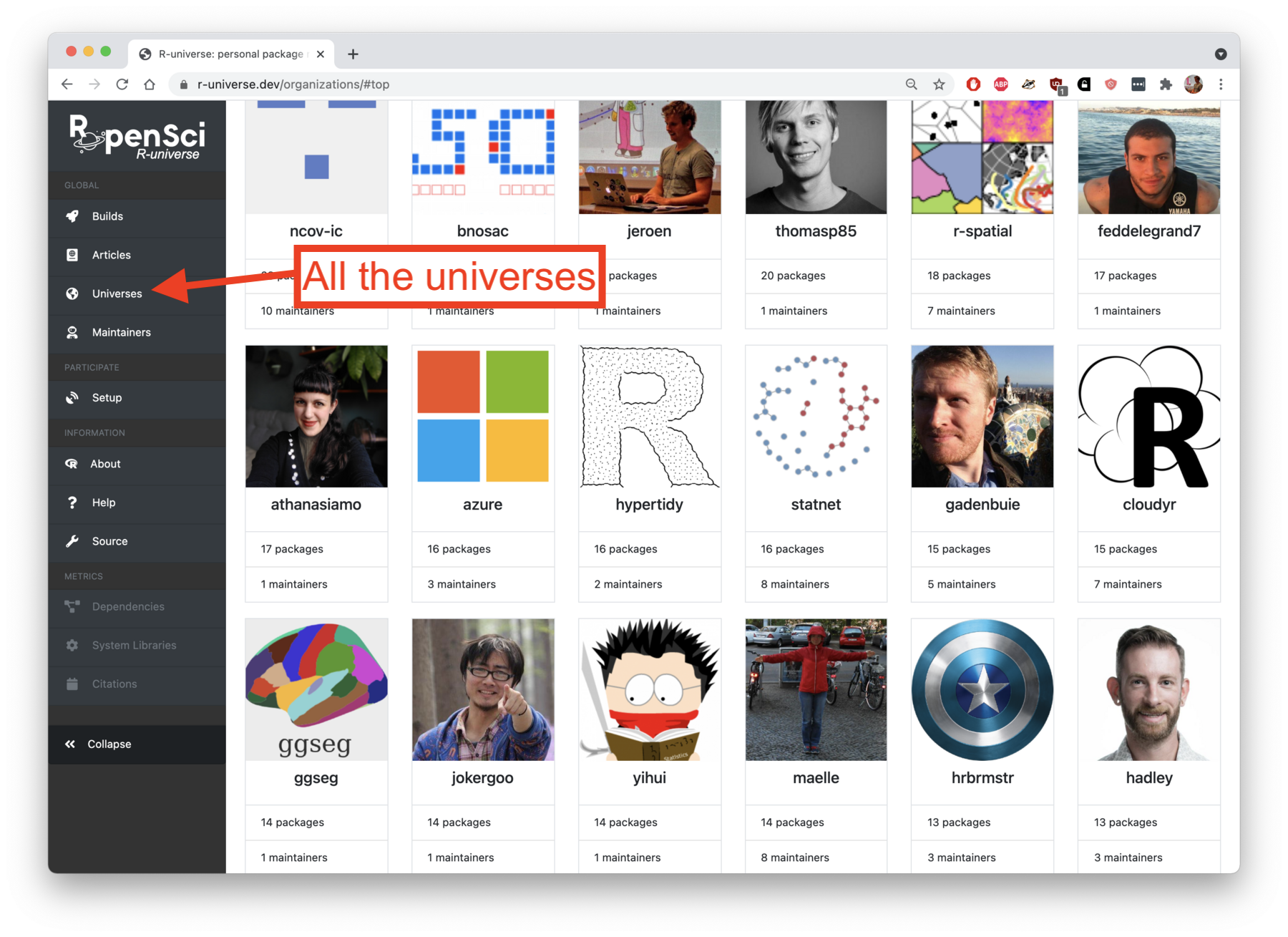

There are many other examples, we have about 300 universes right now.
Browse the webpage for more examples.

---
class: inverse, center, middle

# Non-software packages ?

???

These are mostly existing uses,
but one thing I am personally most excited about is another use case.

---
class: compendium

# R packages as a research container format

![compendium](images/compendium.png)

R-universe is also suitable for publishing non-software research material.

For example packages containing only:

- A vignette to create a live, reproducible paper
 - Research compendium with supporting material for scientific publication
 - A set of tutorials
 - Code + writeup for homework assignment
 - One or more datasets
 - You make the rules!

Any R-based content can fit in a package.

.footnote[
<small>*Image source: _Packaging Data Analytical Work Reproducibly Using R (and Friends)_ <br>
Ben Marwick, Carl Boettiger & Lincoln Mullen, in "The American Statistician", 2018.</small>
]

???

We are used to think of R packages mostly for sharing reusable software.

But many people have argued that a package is actually a generic container for research material.

R packages provide a standard format for bundling some code, data, articles, and metadata to set the author, license, dependencies and so on.

For example suppose you have a publication or homework assignment that consists of an Rmarkdown or sweave file, and then some supporting code and data. From here it is a small step to put that into a package, and publish that on your universe, and get an automatically live rendered version of that paper.

My hope is that people can use R-universe, to publish R-based research material. And that we start seeing articles, based on vignettes, not just used for software documentation, but live reproducible research.

---
class: inverse, center, middle

# Global feeds connect the universes

???

So far we mostly talked about what a single universe looks like.

We would like visitors to be able to browse and discover content from universes.

One way is through global feeds.

---
class: fullpage

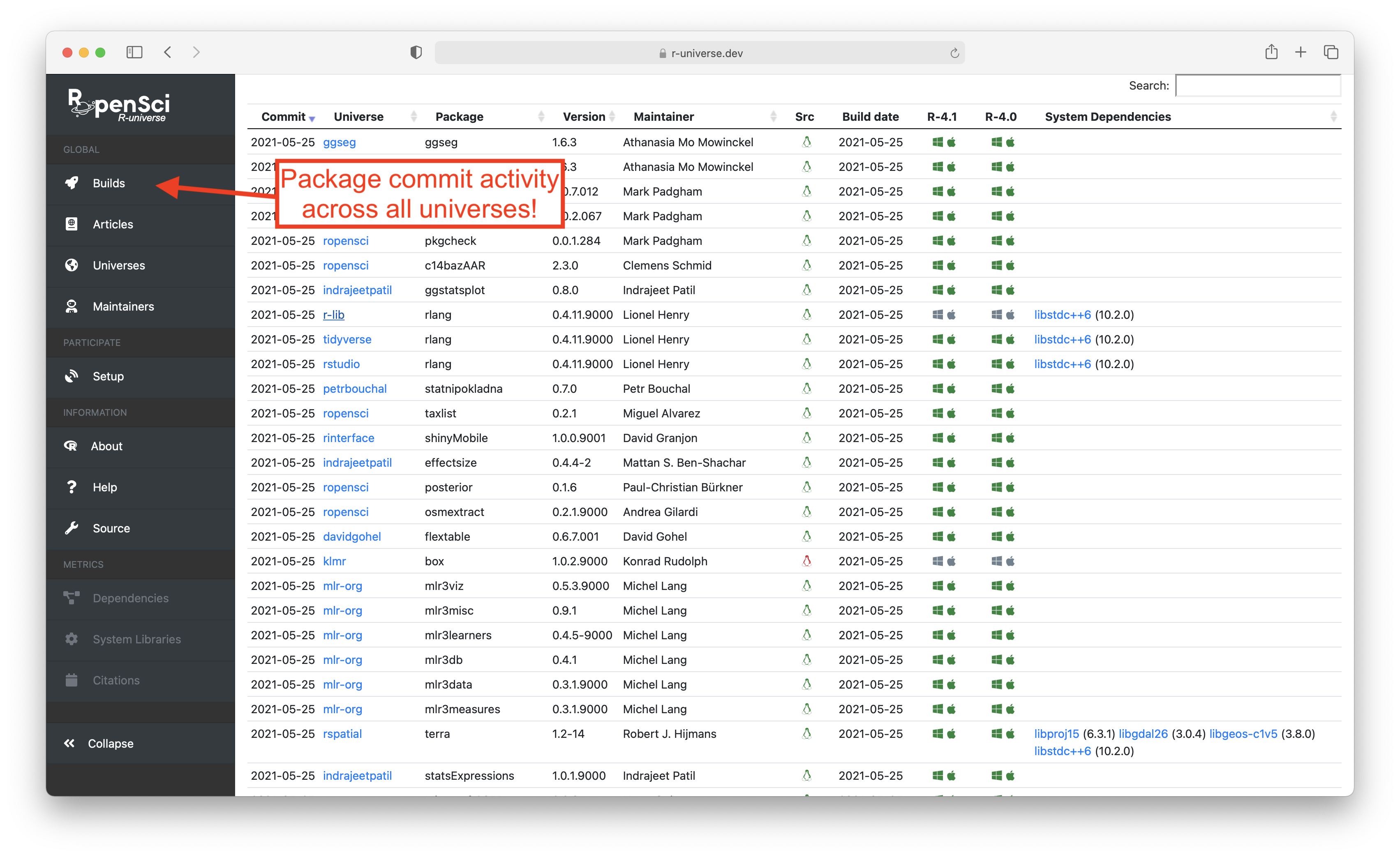

# Global feed: builds

![globalbuilds](images/global-builds.png)

???

The homepage on r-universe.dev shows a global feed of all package commits across all universes. So that is fun to look at to see what people are working on.

---
class: fullpage

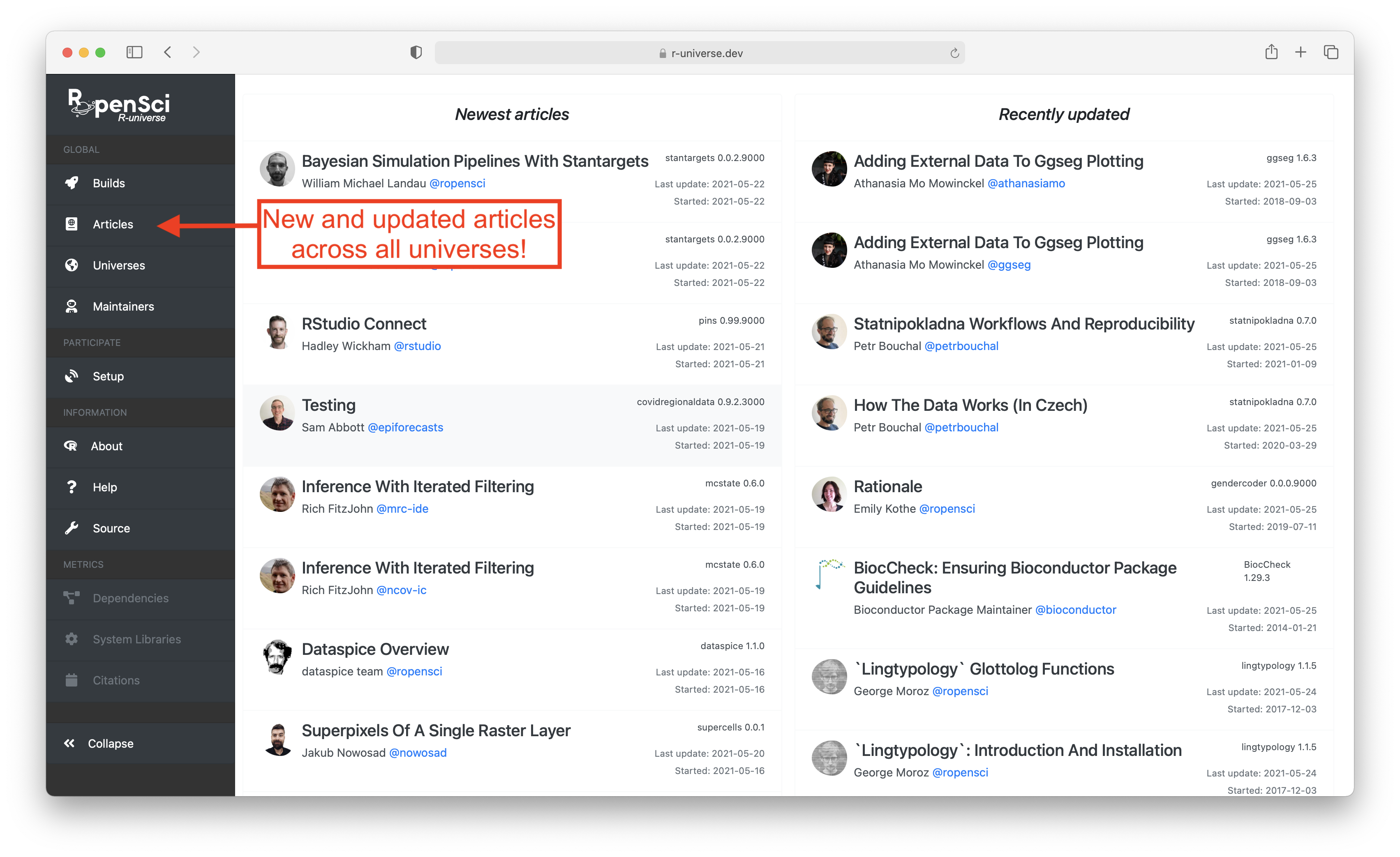

# Global feed: articles

![globalarticles](images/global-articles.png)

???

Similarly there is a global feed of all the articles, that have been recently created or updated.

This is actually very cool to look at, I have discovered several cool new packages and features by looking at the feed of article updates.

---
class: fullpage

# Global feed: maintainers

![globalmaintainers](images/global-maintainers.png)

???

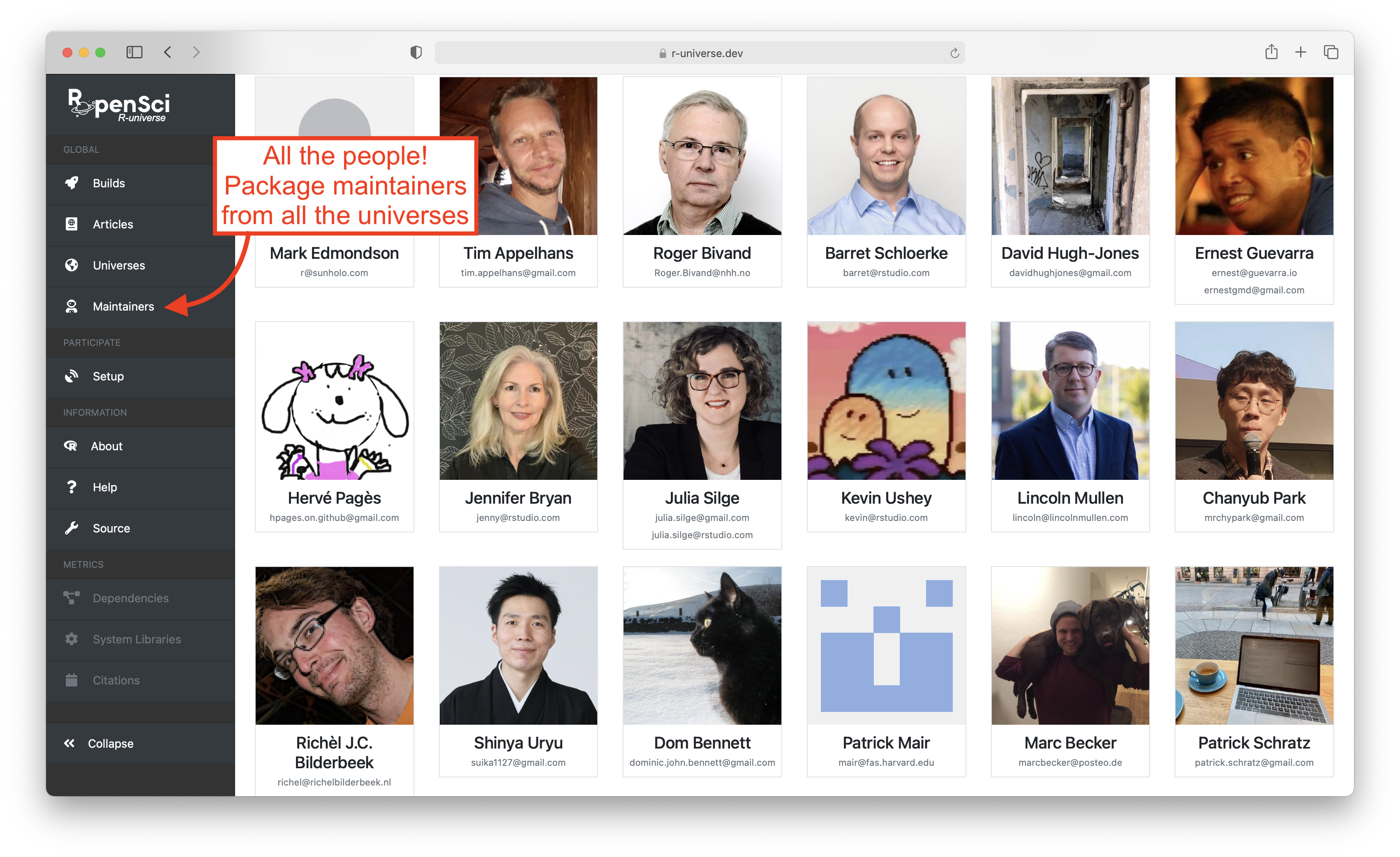

The homepage also shows a maintainer view.

So this is an aggregate across all universe, grouped by the maintainer.

---
class: fullpage

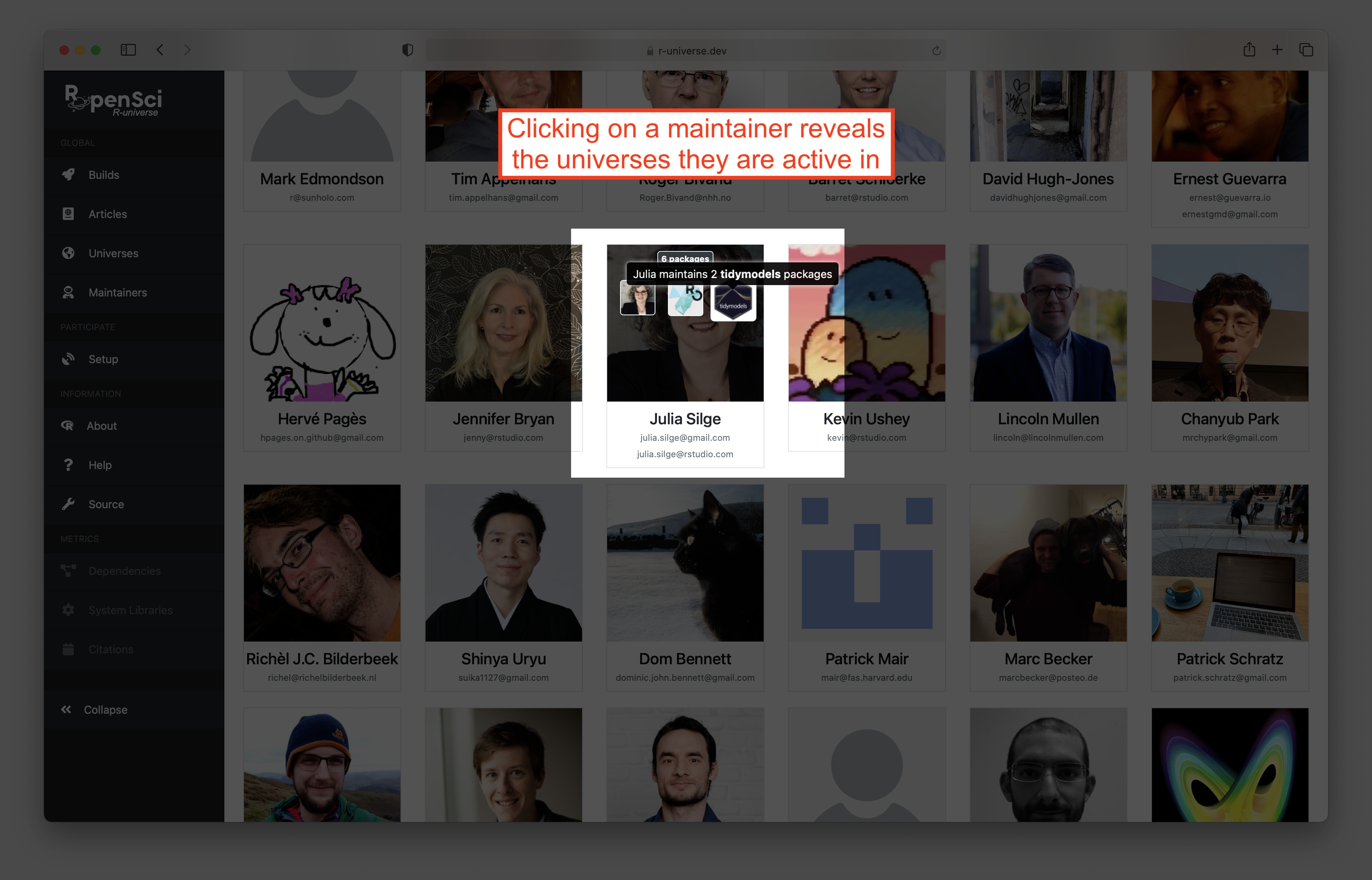

# Global feed: maintainers

![maintainerinfo](images/maintainer-info.png)

Many maintainers are active in multiple organizations. So if you hover over their name you can see which universes contain packages that are maintained by this person.

---
class: inverse, center, middle

# How to setup your own universe

???

By now you may be curious: how do I set up my own universe?

---
class: fullpage

# Technote: get started with r-universe

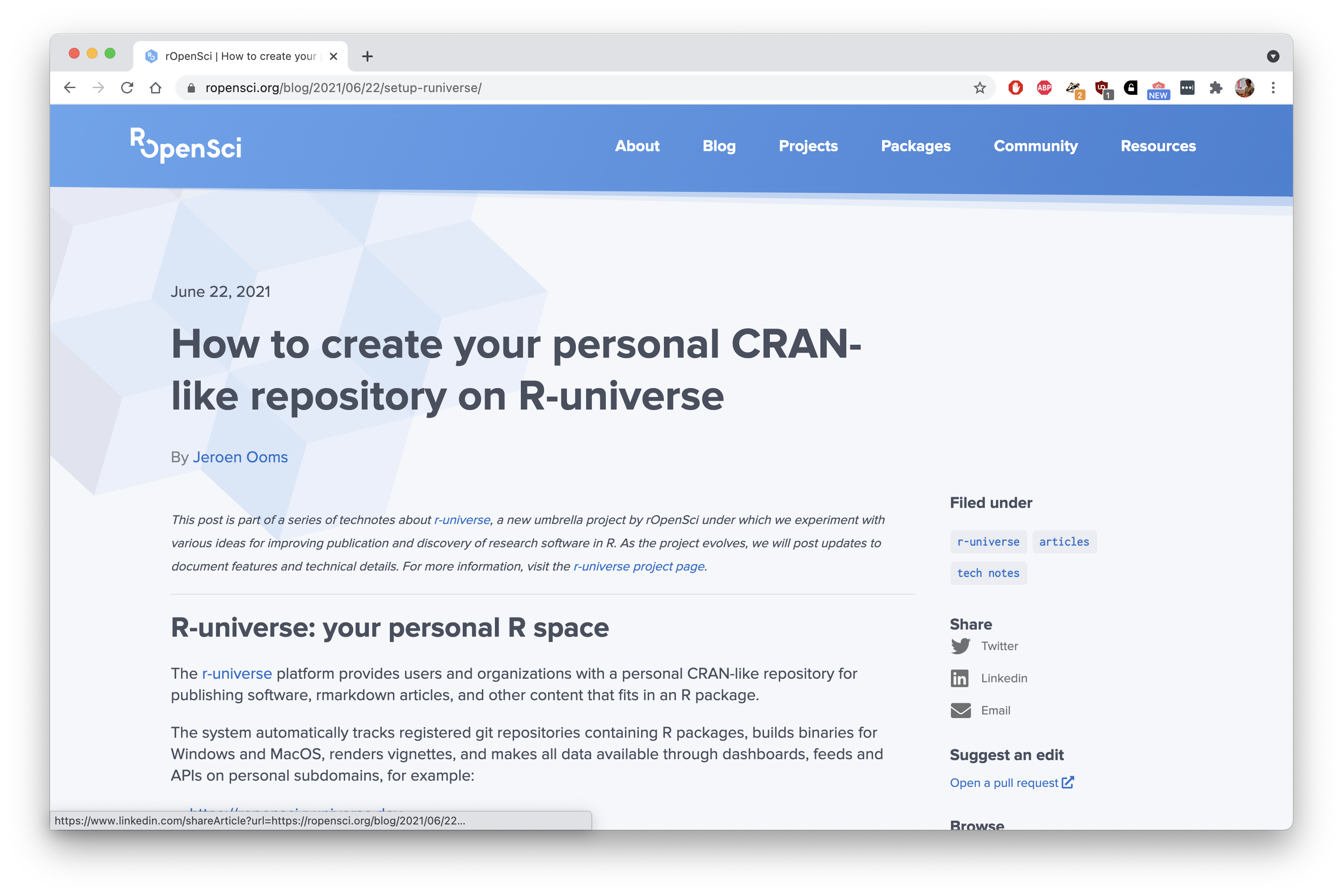

![commitstatus](images/setupblog.png)

???

I will briefly show how it works, but the best reference to this is a technote that I wrote recently on the ropensci blog.
Which you can checkout on ropensci.org.

---
# Step 1: create your registry

Create a repository called `universe` on your GitHub account. Add a file called `packages.json` listing the names and git URLs of the R packages you want to include:

```json
[
    {
        "package": "goodpress",
        "url": "https://github.com/maelle/goodpress"
    },
    {
        "package": "cransays",
        "url": "https://github.com/lockedata/cransays"
    },
    {
        "package": "rodev",
        "url": "https://github.com/ropenscilabs/rodev",
        "branch" : "master"
    }
]
```

Example: https://github.com/maelle/universe. Start by adding no more than a few packages, you can add more later. The `branch` field is optional, omit to track the default branch.

???

Basically all we need from you is a registry file called packages.json.
This file lists all the packages you wan tto include, and their git url where we can find that package.

---
class: fullpage

# Step 1: create your registry

![maelle](images/maelle.png)

???

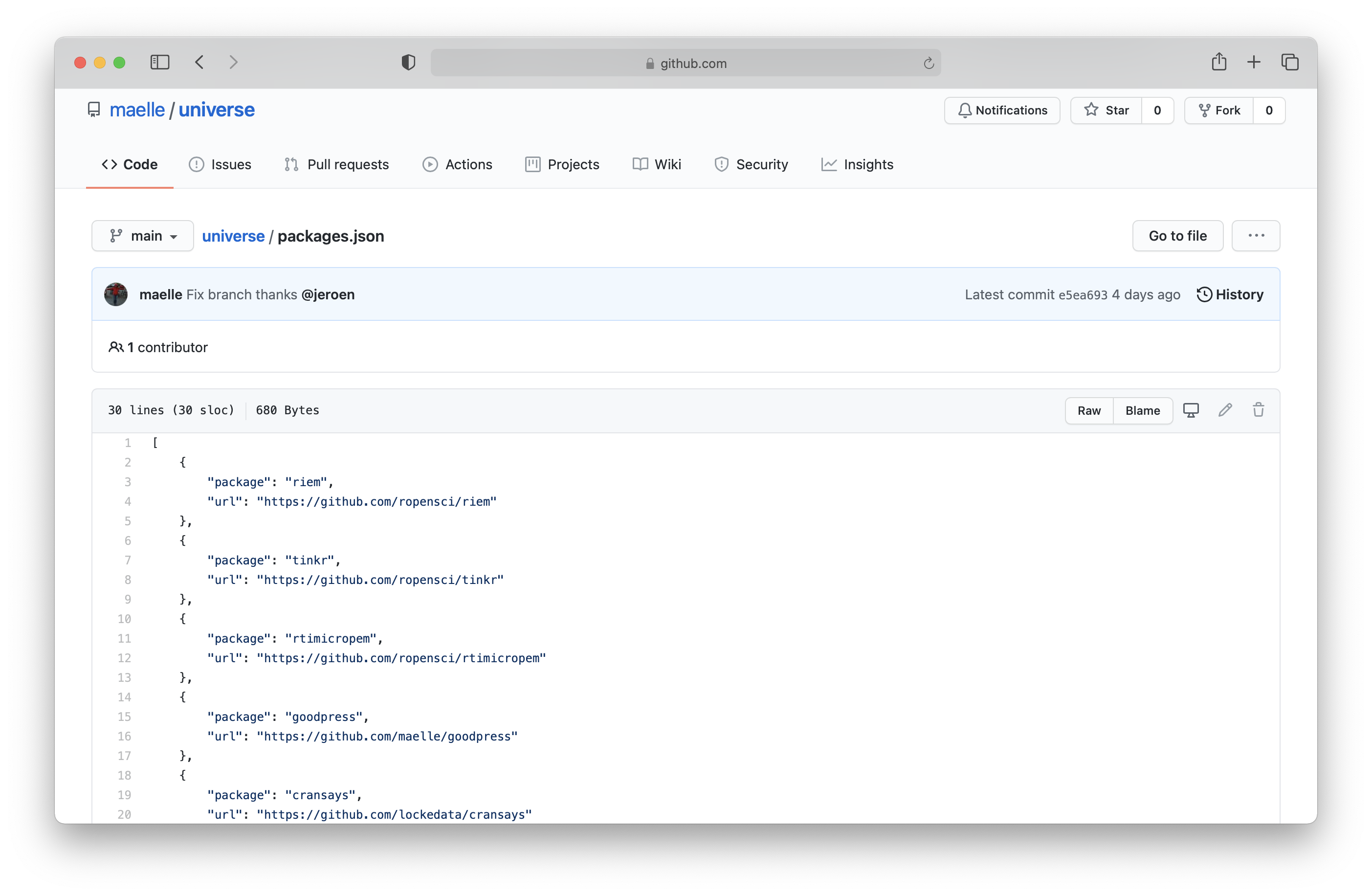

So you need to publish this file in a repository called `universe` in the github user or organization for which you want to create the universe.

---
class: fullpage

# Step 2: install the GitHub app

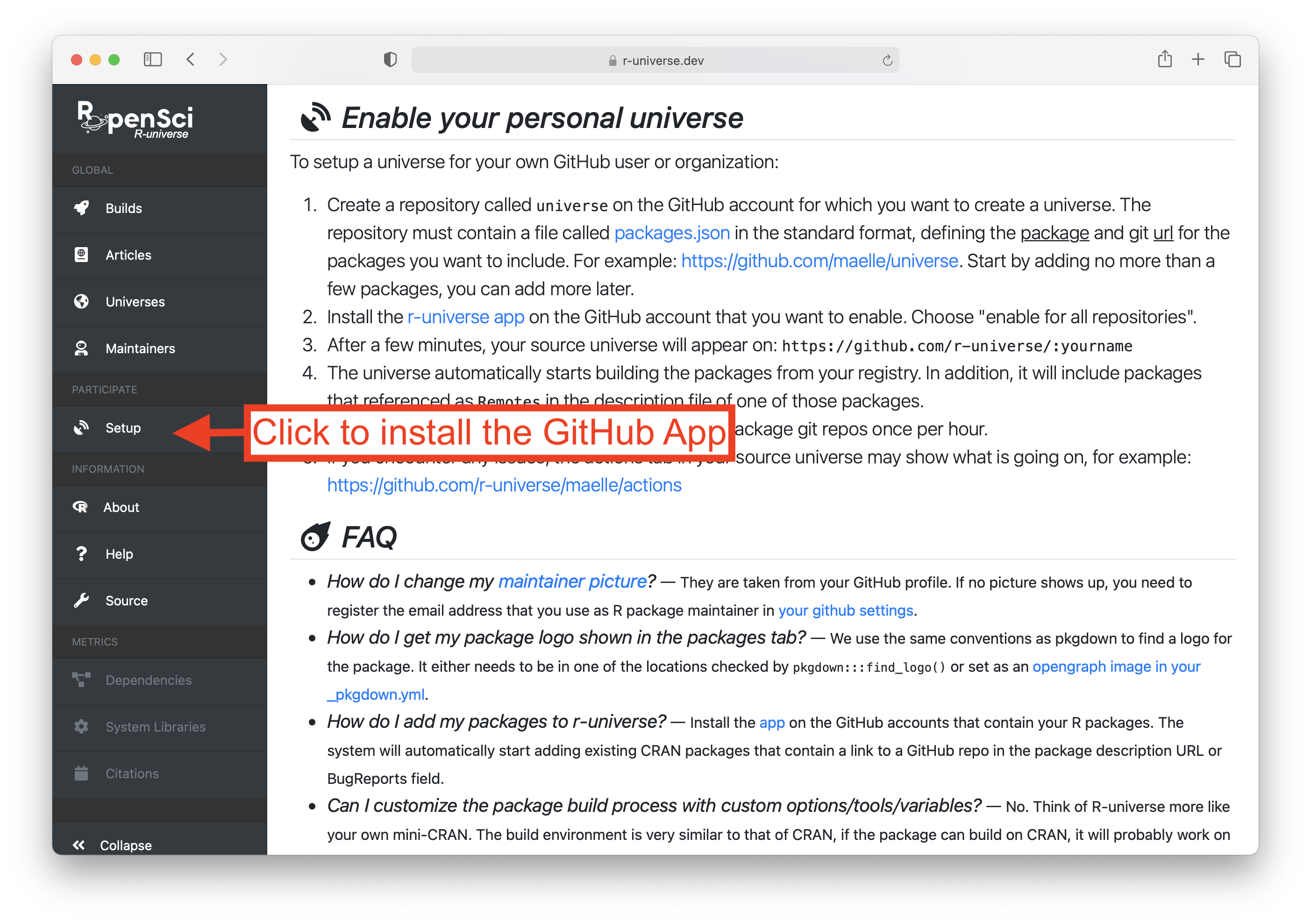

![setup](images/setup.png)

???

And then the final step is to activate it by installing the GitHub app on your account.

---
class: fullpage

# Step 2: install the GitHub app

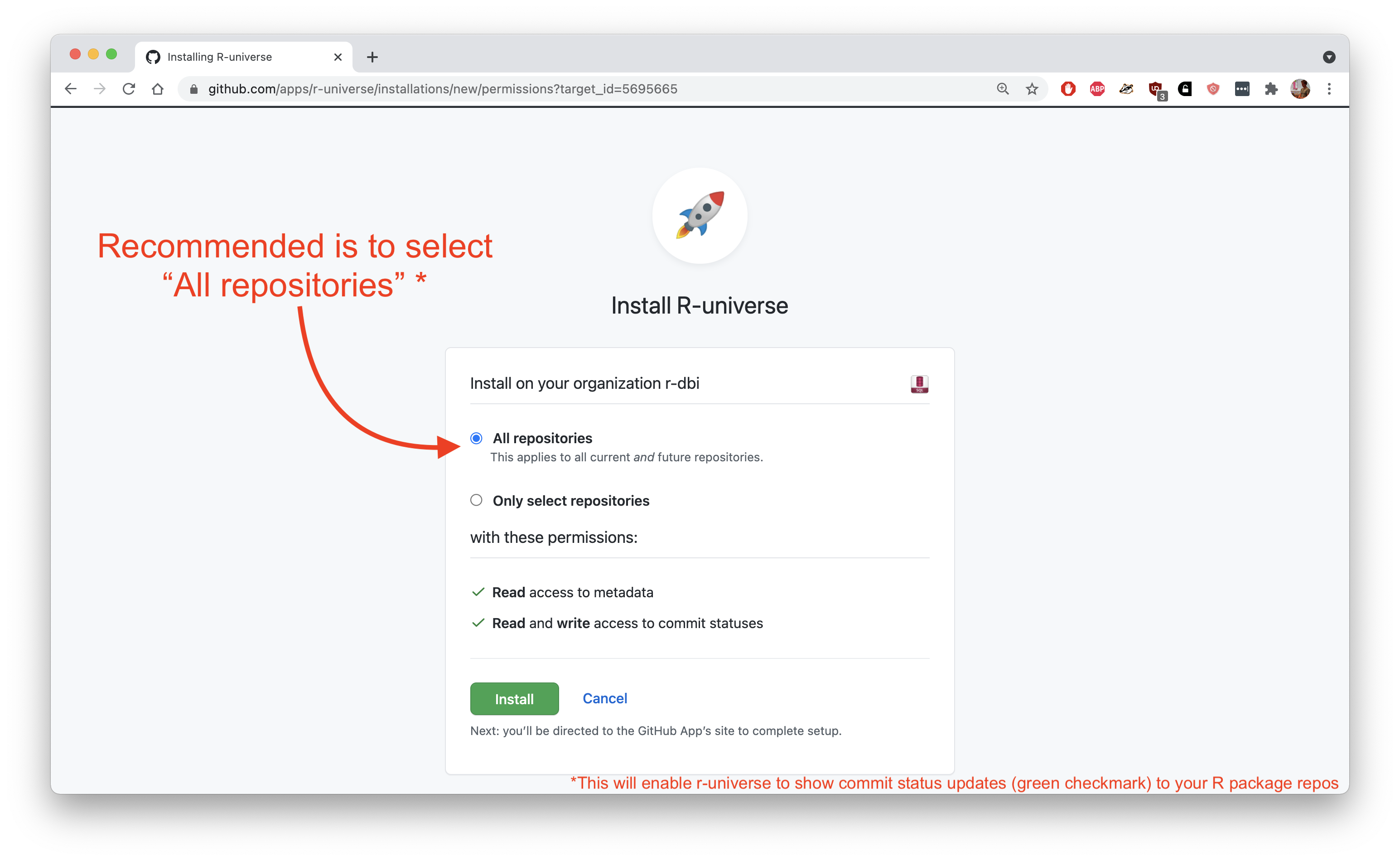

![installapp](images/installapp.png)

???

The app needs very few permissions.
It only asks for writing "commit status" which allows the system to post the green checkmark behind the commit in your package repo, as we will see in a second.

---
class: fullpage

# Your universe monorepo

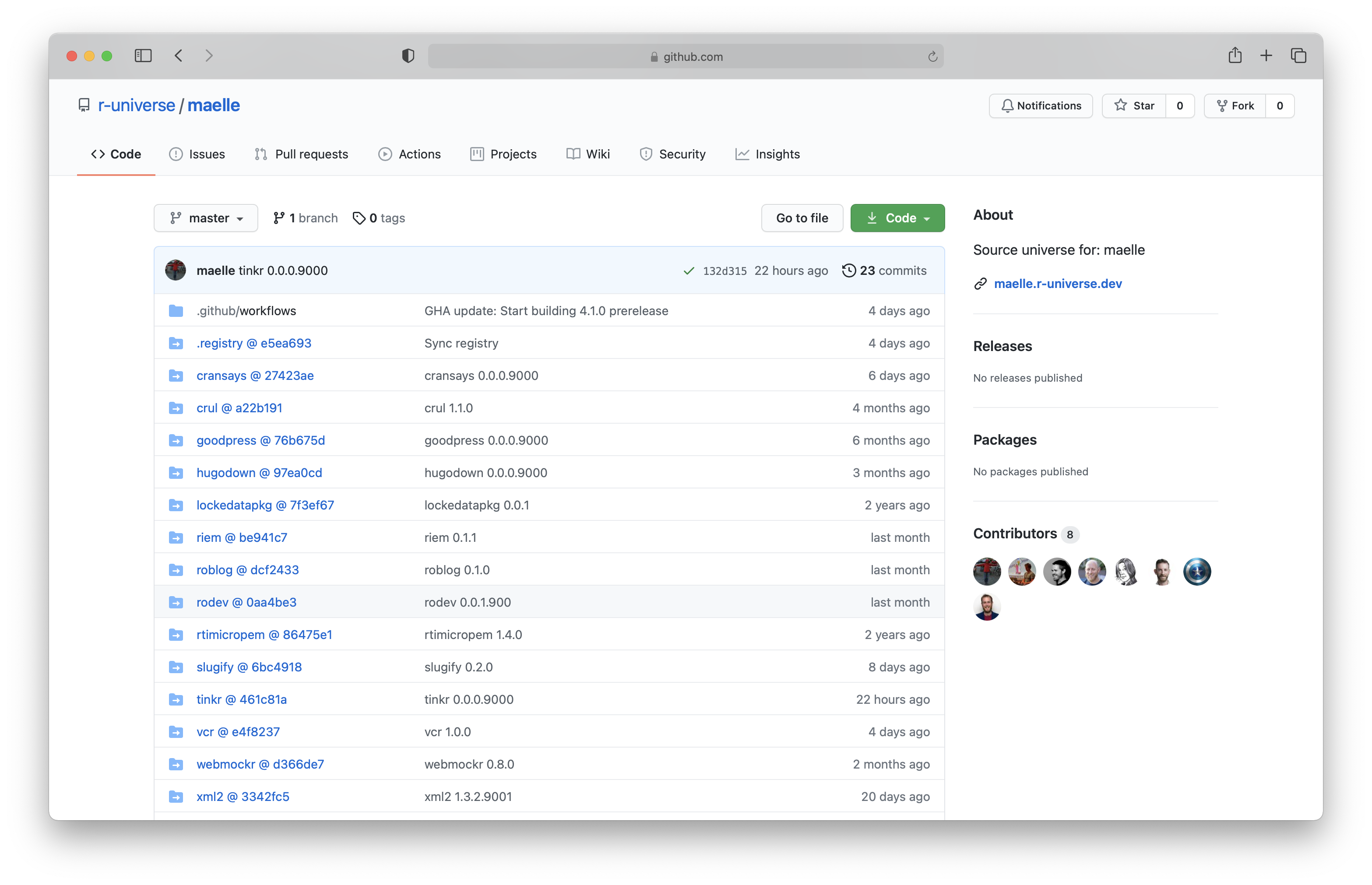

![monorepo](images/monorepo.png)

???

What happens next is that the system automatically creates a monorepo for you under the `r-universe` organization on GitHub.

The monorepo is a git repository in which each of your packages is a submodule. And it is basically the canonical source for your universe.

This process is extensively described in another technote on our blog.

---
class: fullpage

# Your universe monorepo

![actions](images/actions.png)

???

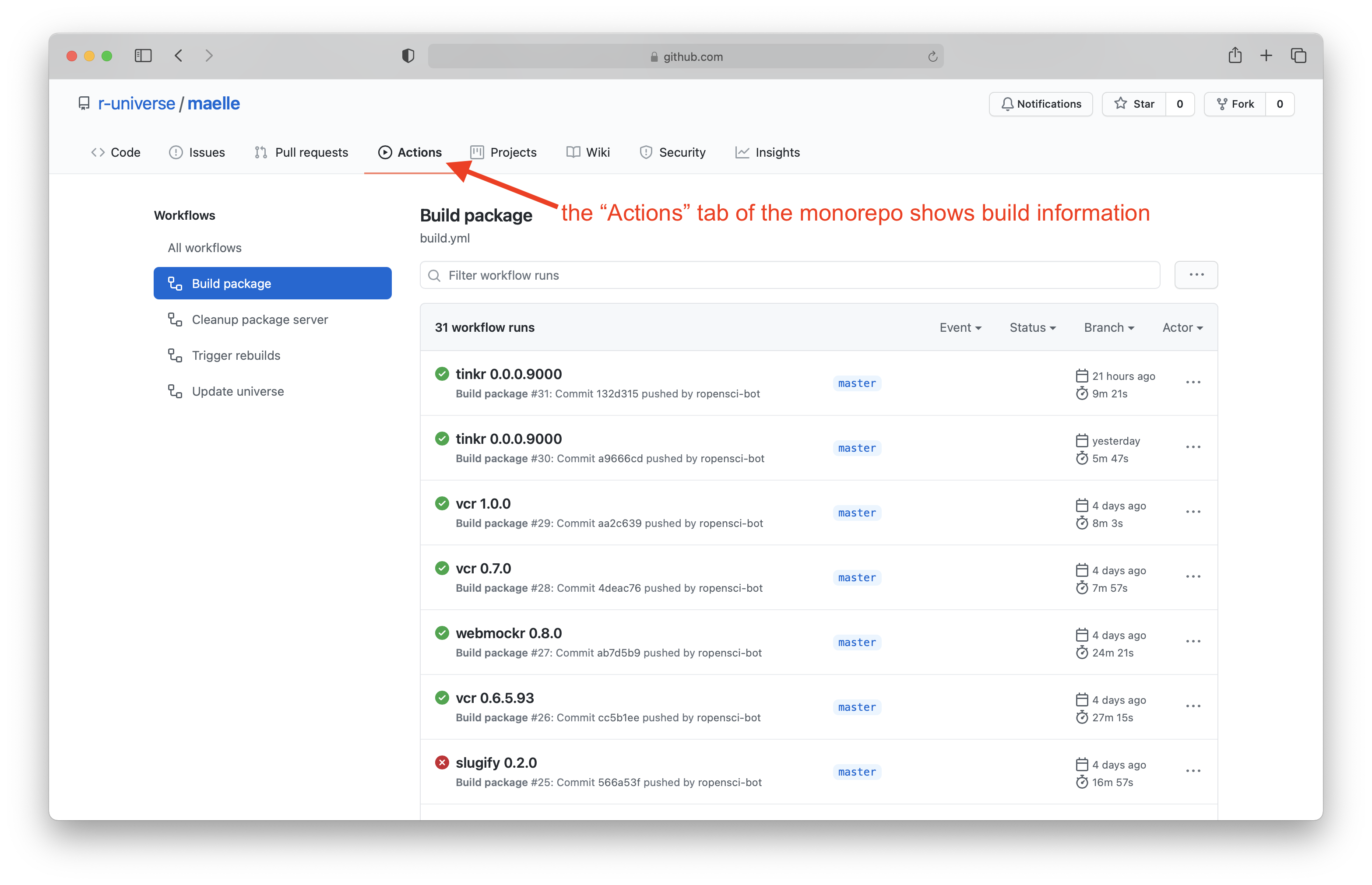

The 'actions' tab of your monorepo is where all the building happens. So you can have a look there if you are curious how all this works.

---
class: fullpage

# Now just wait...

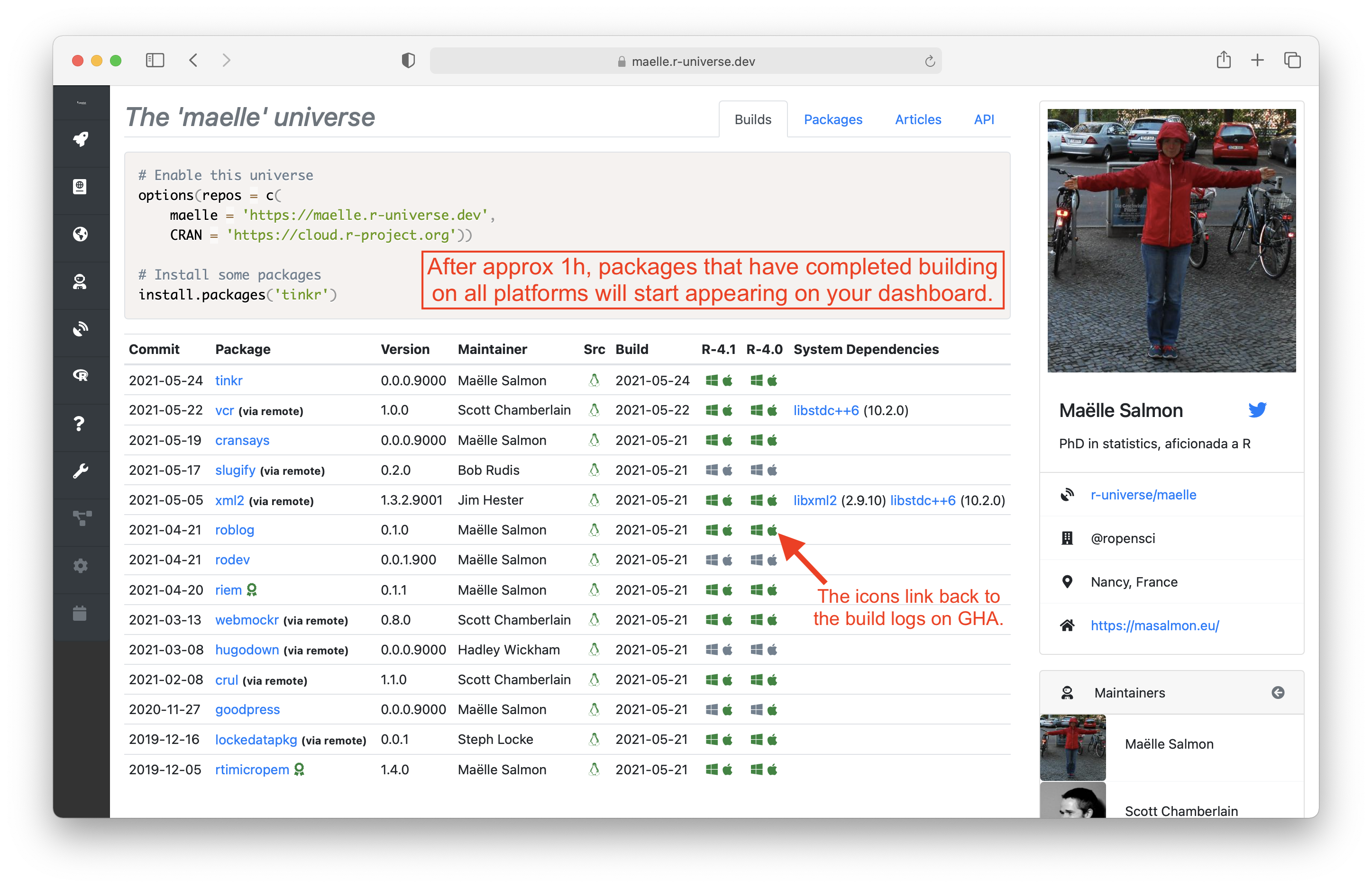

![maelledash](images/maelledash.png)

???

And then after a while, usually no more than an hour,

packages that have completed building start appearing on your dashboard.

---
class: fullpage

# Show commit status (if permitted)

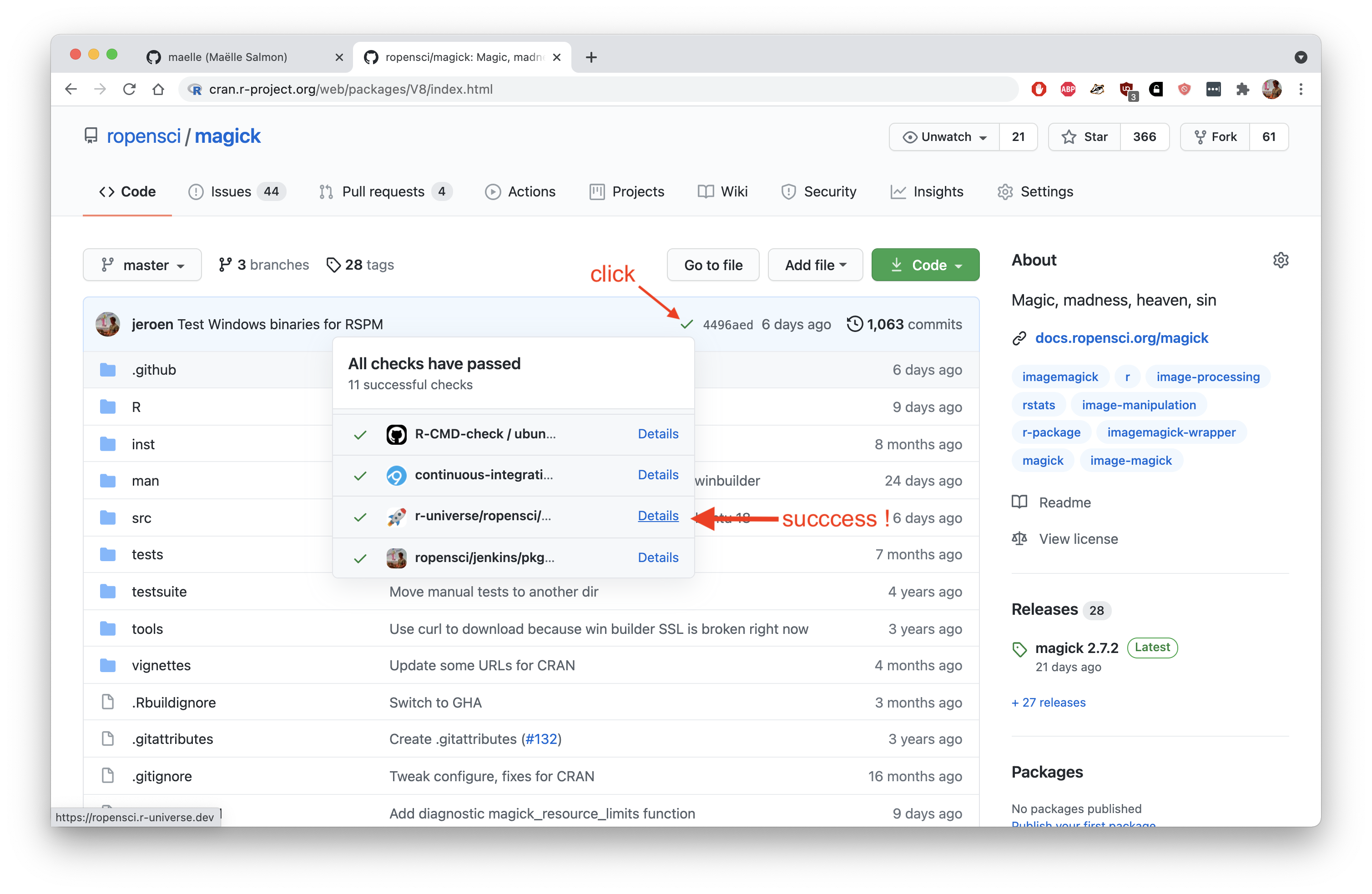

![commitstatus](images/commitstatus.png)

???

For packages that were succesfully deployed on r-universe,
the system posts a commit-status update to the upstream R package repository.

---
class: inverse, center, middle

# Future plans: integrated health and impact metrics

???

This is the current state. We have just started, and want to build this out.

We have many ideas of features we want to add.

One thing we are currently working on is integrating various
metrics about packages that may be indicators about the quality and health and impact of
research software projects.

---
class: fullpage

# Health monitoring: motivation

![rstudio-talk](images/rstudio-talk.png)

???

To learn more about the motvation behind this, you can watch the recording from my talk at
rstudio-conf from earlier this year. The talk is also linked on our homepage.

In the talk I try to explain why we believe it is important for
organizations and potential users of software to get a sense of the health
and the quality of the software that they want to build on.

---
class: fullpage

# Software Metrics

![venn](images/venn.png)

???

I talked a bit about various types of indicators that you could look at in an open source project,
where I distinguished technical, social, and scientific indicators.

We want to integrate these sorts of indicators with r-universe, so that the dashboard or API
reveals information if a project is still active, and how it is maintained, and if it is used by other researchers, and so on.

---
class: fullpage

# Technical metrics

![revdeps](images/revdeps.png)

???

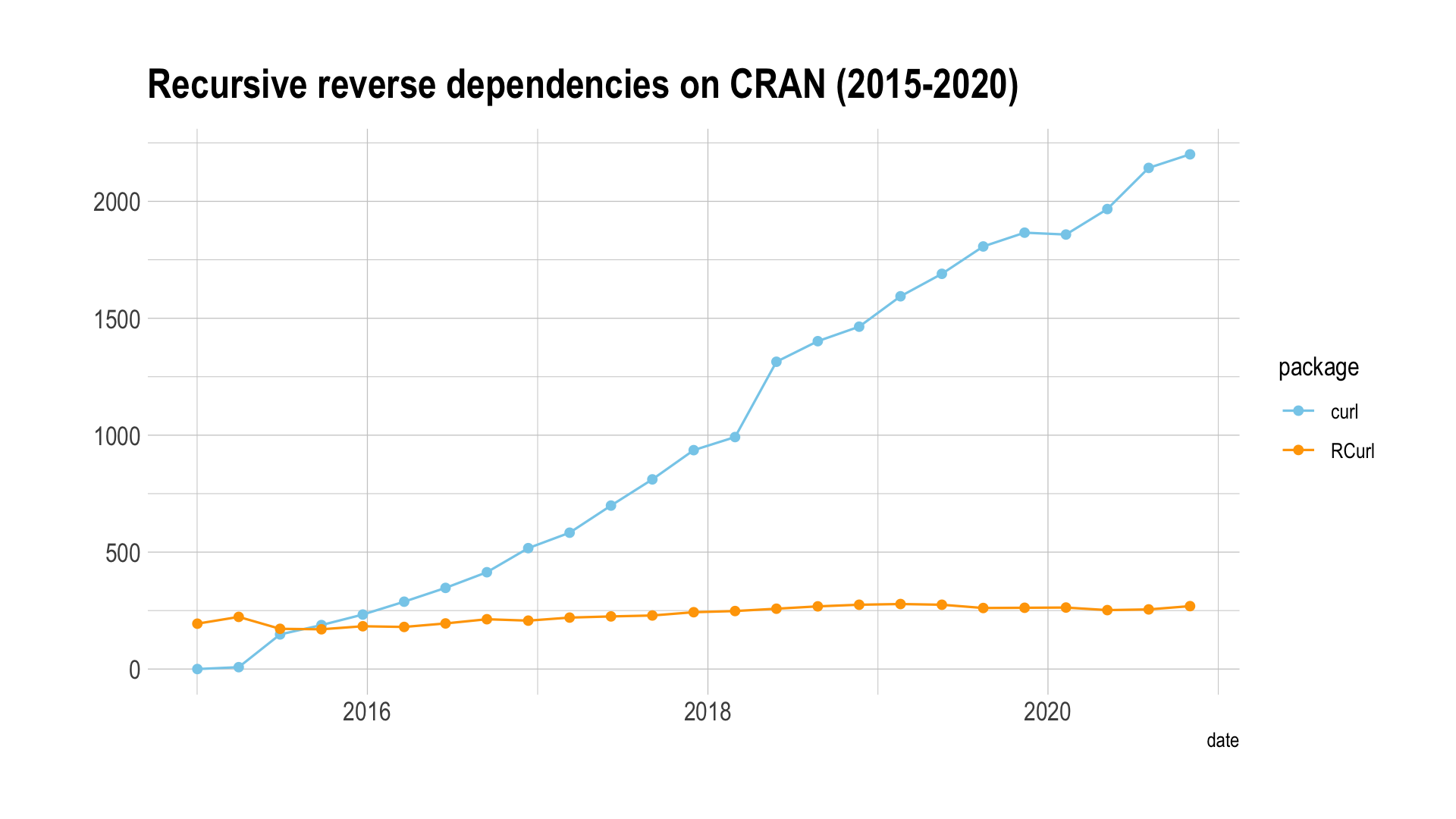

For example we want to integrate some technical metrics about packages, such as statistics about
downloads and commit activity and reverse dependencies, and so on.

---
class: fullpage

# Finding software citations

![citations-example](images/citations-example.png)

???

But a much more challenging and important aspect of this project is to find uses and citations of software in scientific code and publications.

We think this is very important for research software.

For this we are collaborating with a team to build ML models to recognize software mentions in literature.

Now running experiments to look at citations from a large corpus 20-30 million OA articles and extract citations automatically, especially for software we have not seen before.

We hope to announce some interesting progress in this area later this year.

---
# Conclusion

What is R-universe and why is it useful?

- R-universe is an open platform that provides users and organizations with a personal space for publishing R content
 - The system automatically tracks your git repos, builds and distributes binary versions of your packages for Mac and Windows.
 - Users can easily install packages from your personal CRAN-like repository, without complex configuration of compile tools and dependencies
 - The dashboard showcases a collection of R packages and vignette content, even when spread across multiple GitHub organizations
 - R-universe can be used as a simple zero-configuration CI/CD system, running the standard checks on the most important platforms.
 - R-universe is very easy to set up! We have dealt with lots of challenges related to dependencies, platforms, etc., for you. You can have a universe with just a few clicks.
 - R-universe combines the best features of hosting your packages on GitHub and CRAN, without being exclusive to either.
 - Anyone, from novice R user to veteran package developer, can setup their own universe.

---
class: fullpage

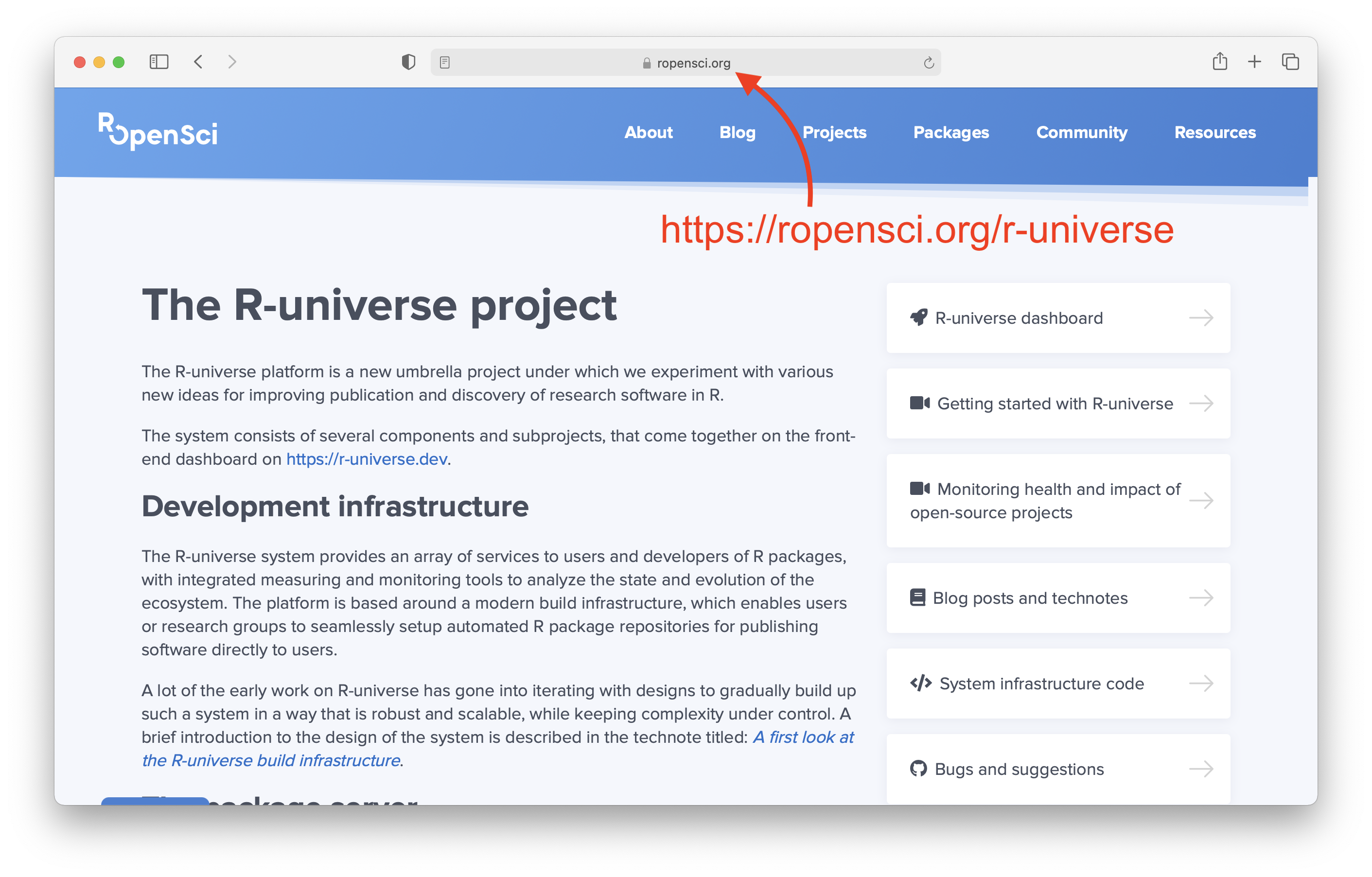

# More information

![homepage](images/runiverse-homepage.png)

---
class: fullpage

# More information: ropensci.org

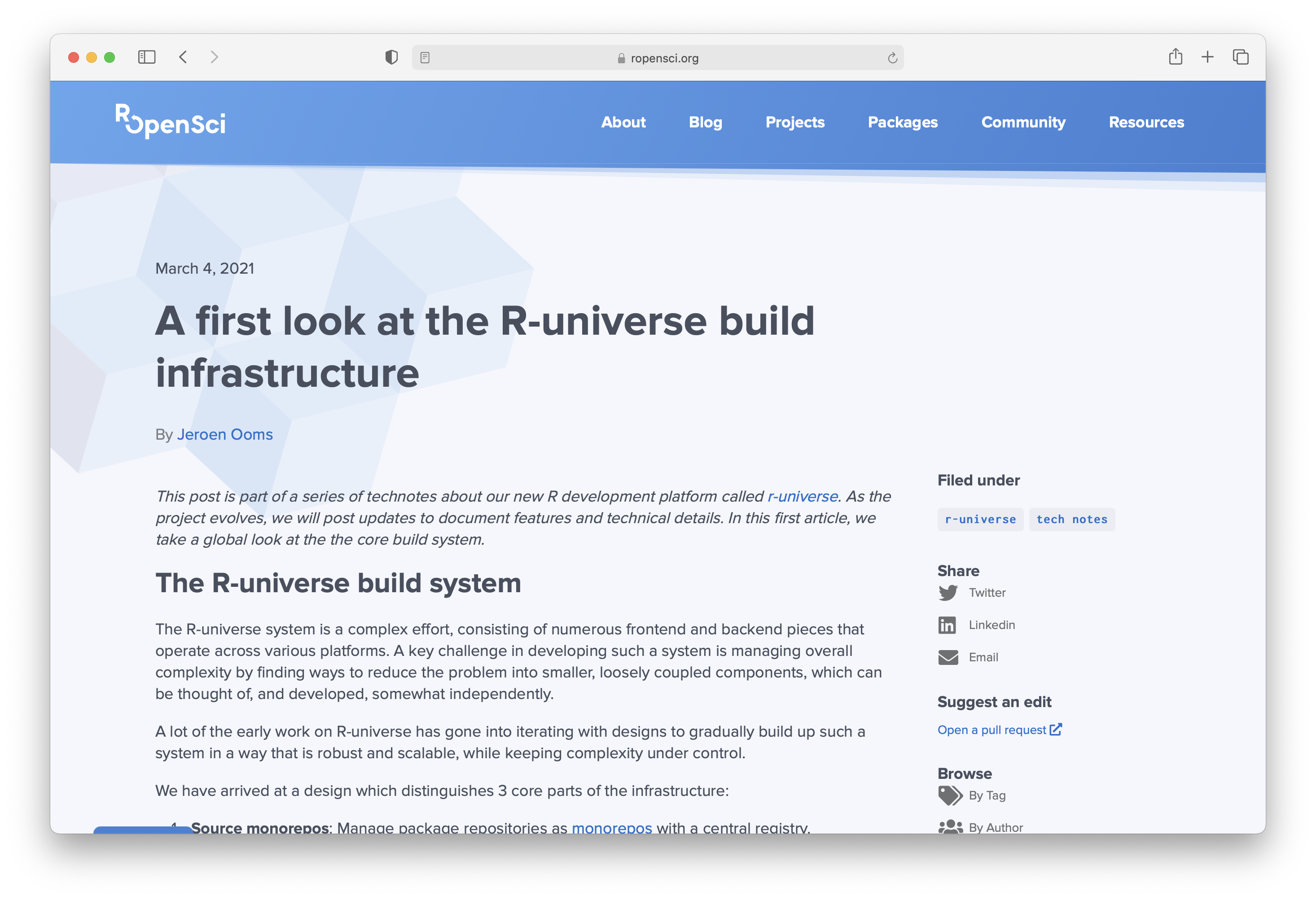

![homepage-build](images/homepage-build.png)

---
class: fullpage

# More information: ropensci.org

![homepage-articles](images/homepage-articles.png)

---
class: fullpage

# More information: ropensci.org

![homepage-setup](images/setupblog.png)
